Product Model

WB56beH6-N×4

Antenna

4 N-K connectors on top
Built-in GPS antenna

5GHz Frequency Band

5.150GHz ~ 5.850GHz

5GHz WiFi Protocol

802.11 a/n/ac/ax/be

6GHz Frequency Band

5.925GHz ~ 7.125GHz

6GHz WiFi Protocol

802.11 ax/be

Maximum Throughput

5GHz: up to 4323Mbps; 6GHz: up to 5764Mbps

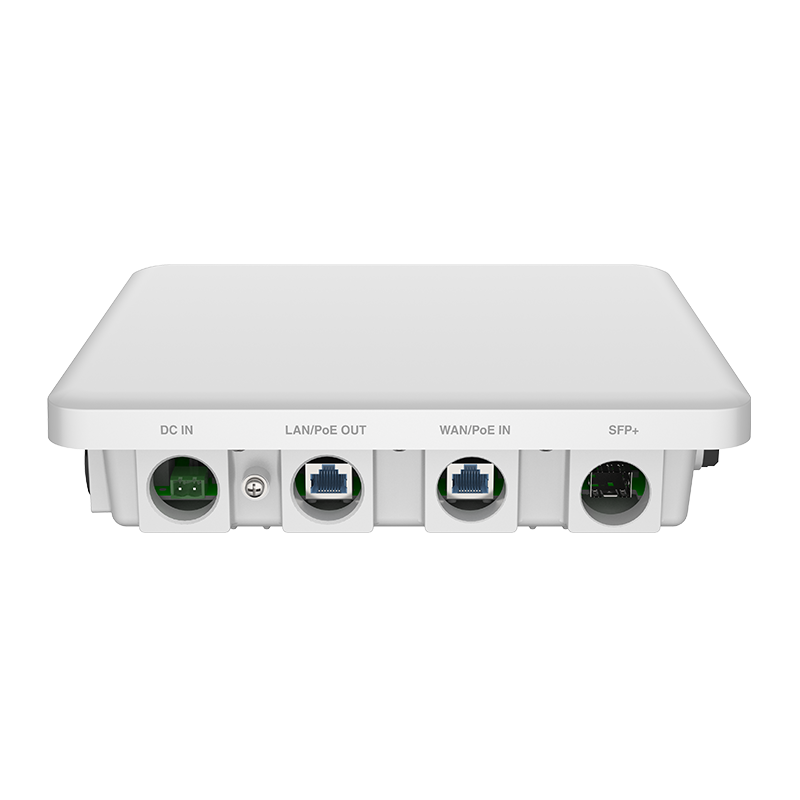

Interface (WAN)

1× 100/1000/2500Mbps auto-negotiation WAN port, IEEE802.3bt input supported

Interface (LAN)

1× 100/1000/2500Mbps auto-negotiation LAN port, IEEE802.3af output supported

Interface (SFP+)

1× 10Gbps SFP+ port, backward compatible with 1Gbps

Interface (Console)

1× standard RS232 RJ45 port

External Button

Reset button (single-click for one-touch bridging; long press 6-10s for factory reset)

Power Supply

PoE 802.3bt; DC 2.0 phoenix terminal ±48V/1A

Maximum Power Consumption

≤ 25W (excluding PSE output)

Status LEDs

a) H (laser-etched): Peer signal strength, software-configurable threshold, solid on when above threshold

b) M (laser-etched): Peer signal strength, software-configurable threshold, solid on when above threshold

c) L (laser-etched): Peer signal strength, software-configurable threshold, solid on when above threshold

d) Radio (laser-etched): Solid on when any radio enabled

e) LAN (laser-etched): 2.5Gbps port, solid on = link up, 1Hz blink = data activity

f) WAN (laser-etched): 2.5Gbps port, solid on = link up, 1Hz blink = data activity

g) SFP+ (laser-etched): 10G port, solid on = link up, 1Hz blink = data activity

h) SYS (laser-etched): Solid on when powered, 1Hz blink during boot, solid on when ready

Dimensions

243.2 × 218.3 × 68.3 mm

Weight

1.7 kg (net), 3.9 kg (gross)

Operating Environment

Operating temp: -40°C to 70°C; Storage temp: -40°C to 70°C; Humidity: 5%~95% (non-condensing)

Status Display

Operating mode, network topology, signal strength, CPU/memory usage, real-time traffic, device description，LAN info, wireless info, bridging info, WAN info (Gateway / WISP)

Operating Modes

AP mode, Bridge mode, WISP mode, Gateway mode

CPE Management (AP/Bridge Mode)

Self-management via proprietary GHCP protocol

Wireless Settings

MLO, SSID broadcast, hidden SSID, channel selection, encryption (NONE, WPA/WPA2-PSK-AES, WPA3-SAE)
Max client limit (0-32), virtual AP (2), spectrum analyzer，Country code, user isolation, Radio mode (2×2 MIMO / SISO)，MAC access control: Blacklist/whitelist mode, MAC address filtering，WiFi scheduled disable，BSSID lock, auto-restart (watchdog)

Security Center

Website filtering，IP address filtering，MAC address filtering，Port forwarding，DMZ

Network Settings

IPv4/IPv6, DHCP, PPPoE, STP, Jumbo Frame, VLAN，Port settings，Ping watchdog，Traceroute，LLDP settings，Cloud platform，Static DHCP，Remote login，Static routing

Device Management

Configuration management，Scheduled reboot，NTP, manual and host time sync，System log, remote log，HTTP, Telnet, SSH, SNMP，Traffic control，Time group / IP group management，PoE power switch，Optical module info，DDNS settings
