School dormitory
Realize the diverse Internet access needs of different areas on campus
Demand Analysis
Insufficient signal coverage
Severe wall obstruction causes significant signal attenuation, leading to dead zones in rooms.
High-density multi-story dorms exceed single AP coverage limits.
Bandwidth Limitations
Peak-hour user overload causes Wi-Fi lag; P2P/video streaming exacerbates congestion.
Insufficient dorm access bandwidth creates entire network bottlenecks.
Management and security risks
Rogue APs trigger interference, degrading performance via co-channel contention.
Require authentication to block unauthorized access.
Poor device access
stability
AP overload causing disconnections/high latency.
Frequent AP switching destabilizing mobile experience.
Unstable smart device connections (e.g., speakers/printers).
Solution Introduction

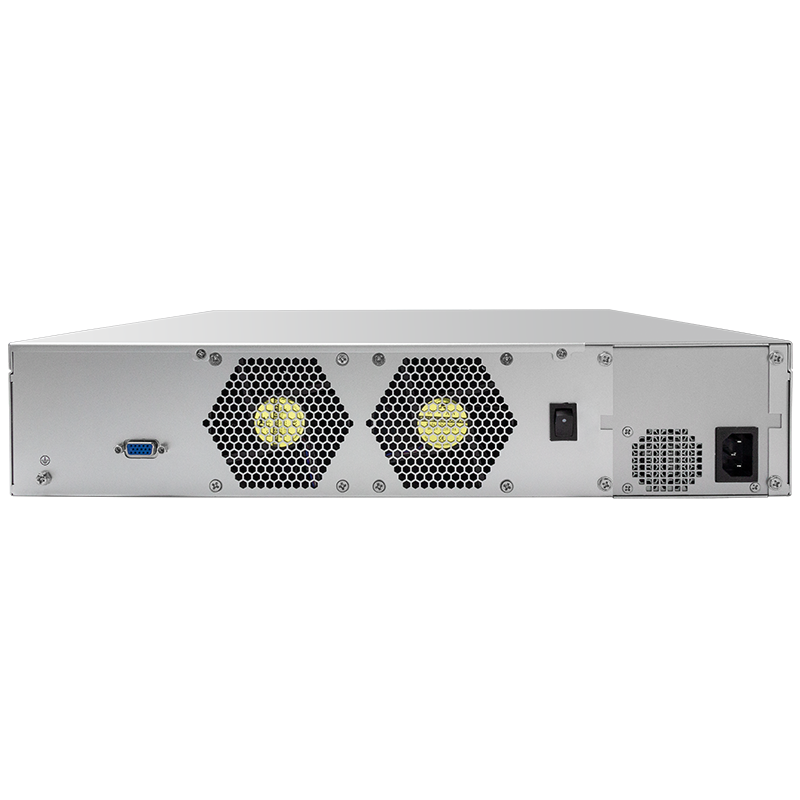

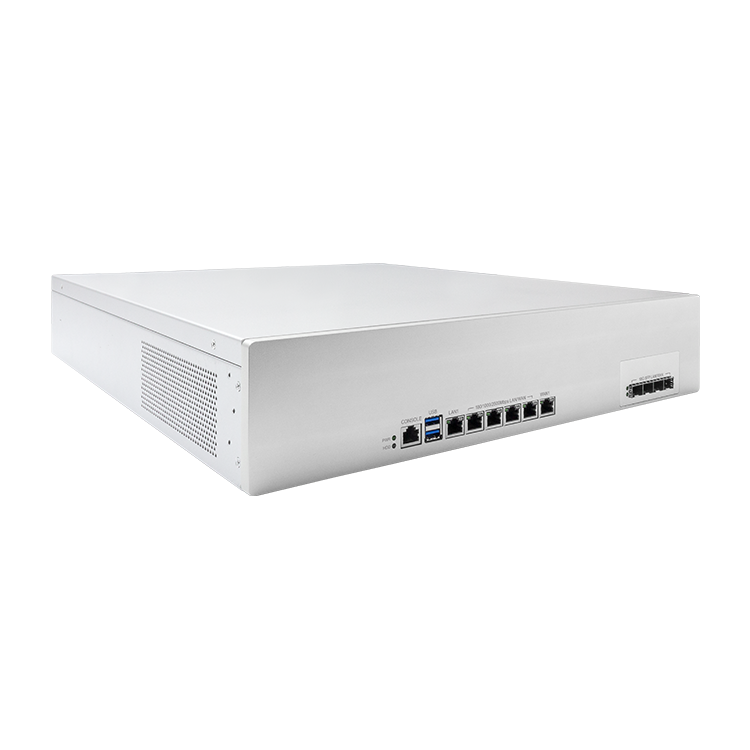

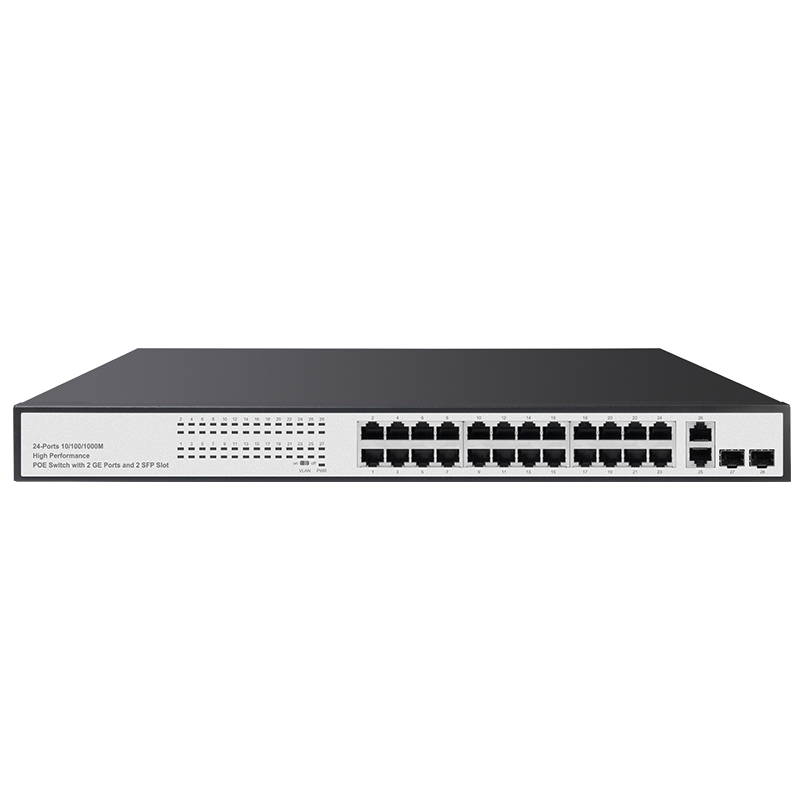

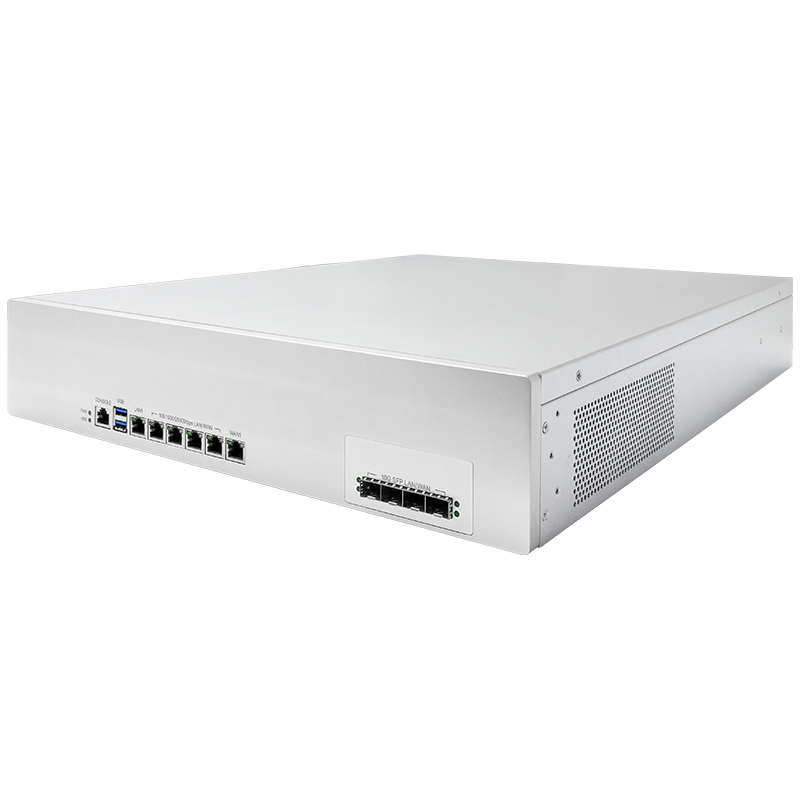

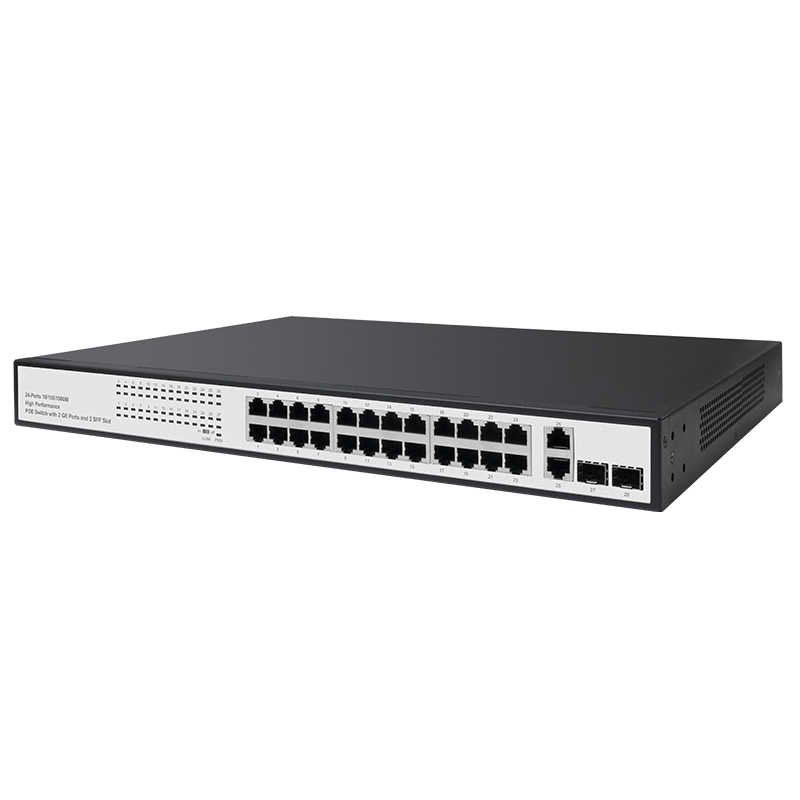

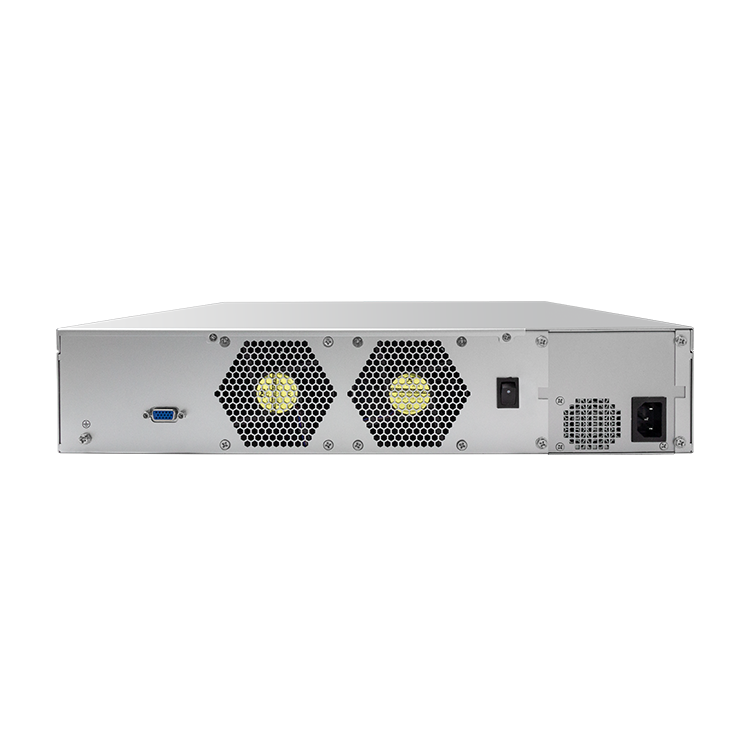

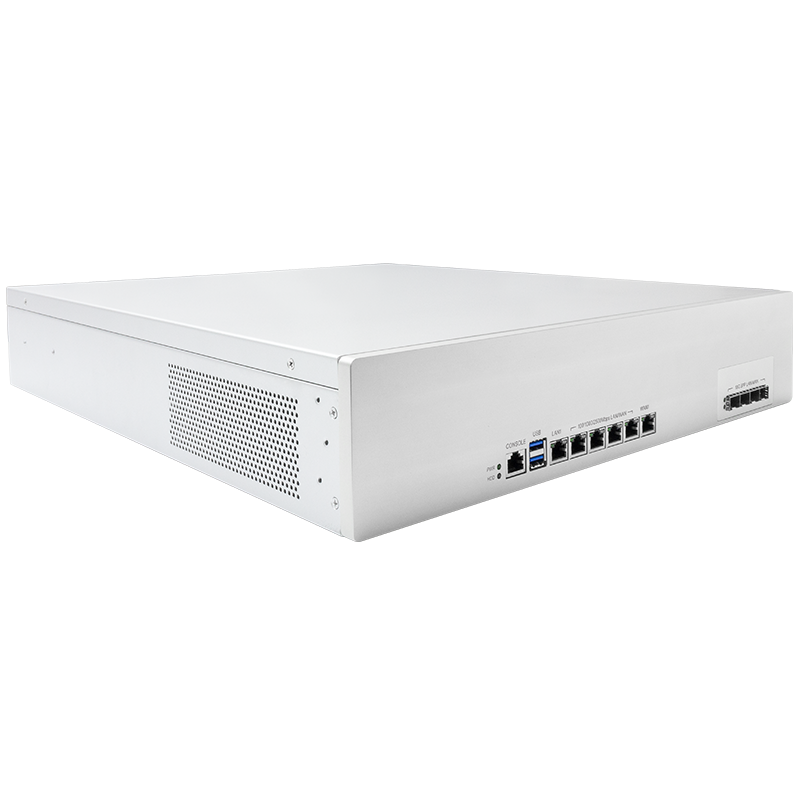

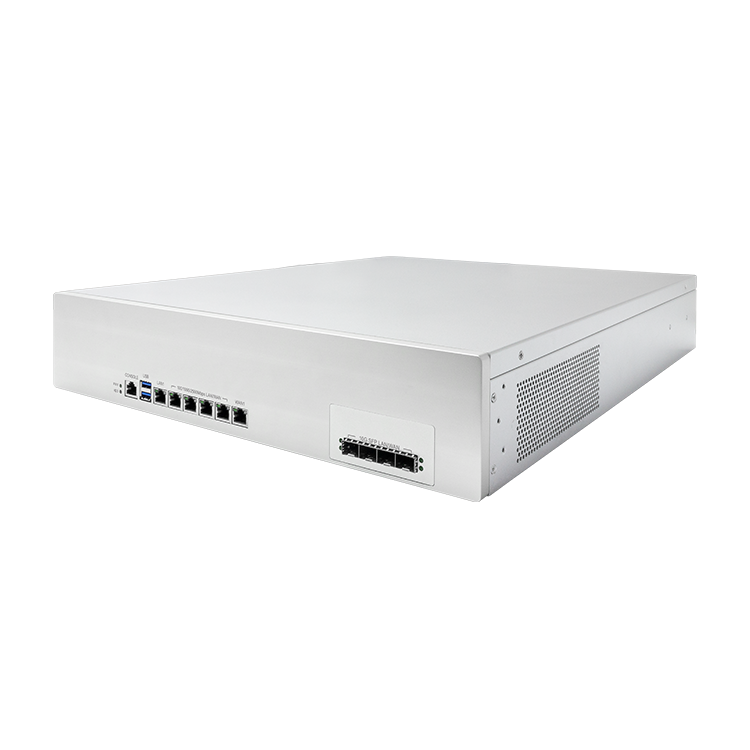

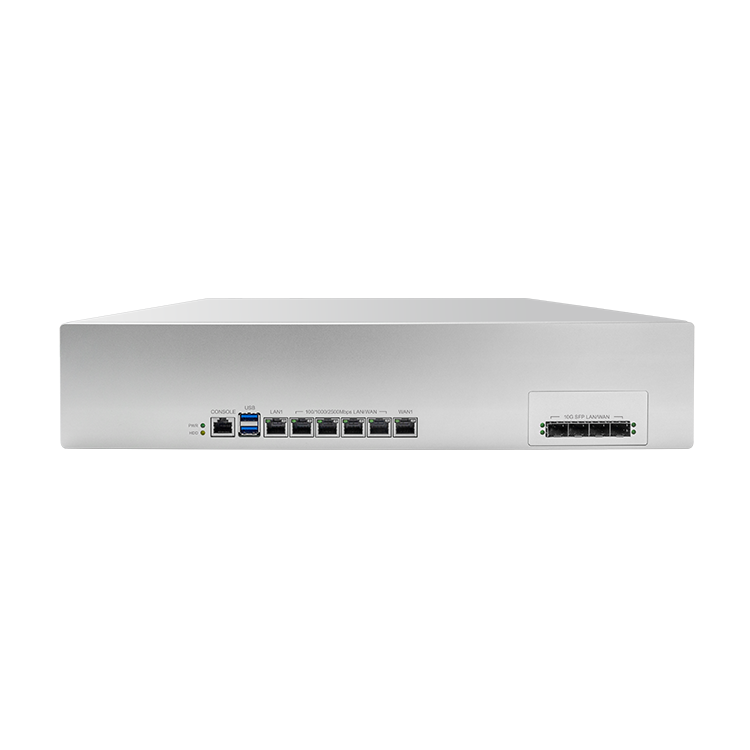

Based on the core routers, core switches, and billing servers currently installed, we developed an AC side-mount + AP solution for WiFi coverage.

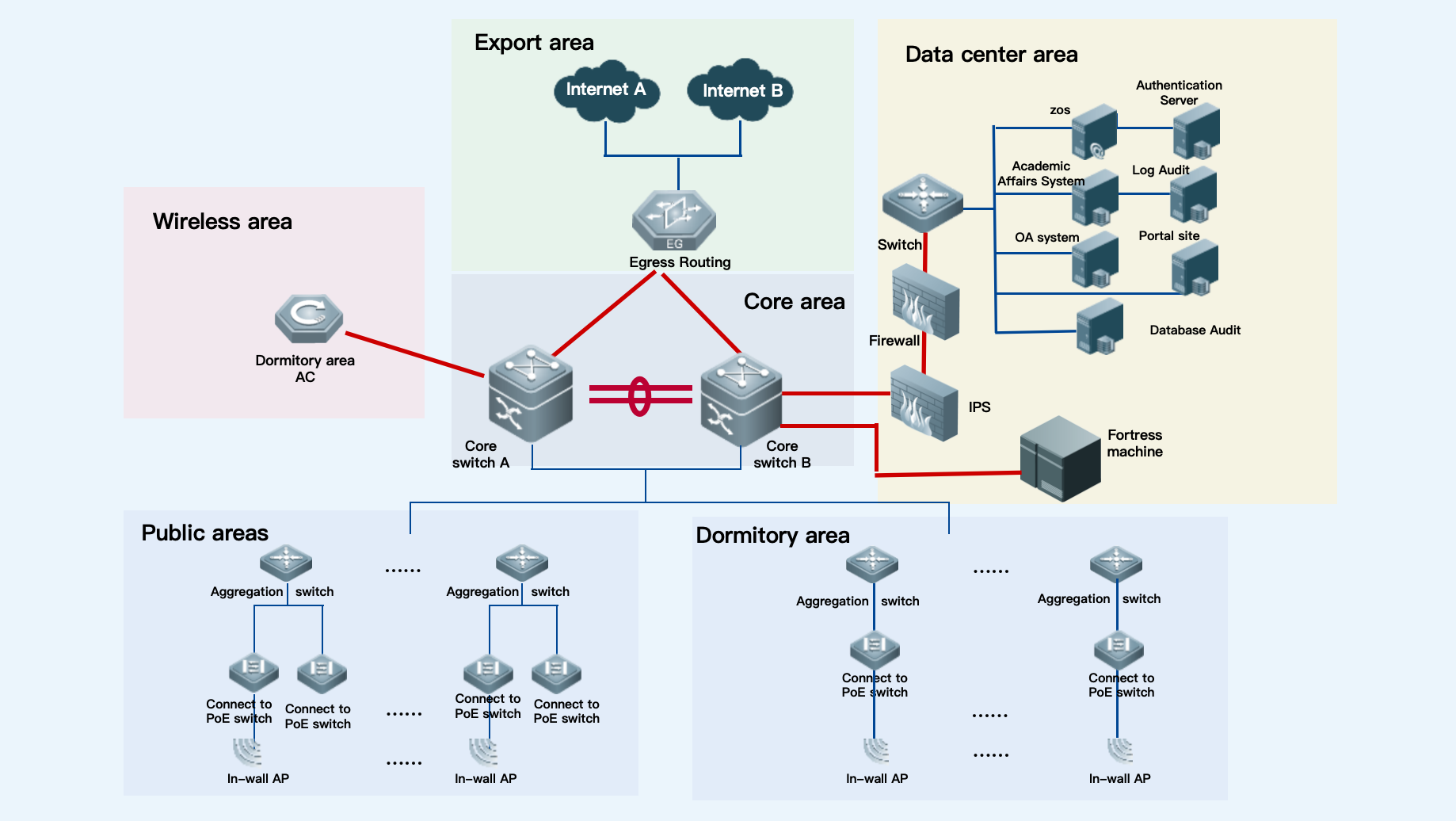

School Network Application Topology Case
Solution Features
-

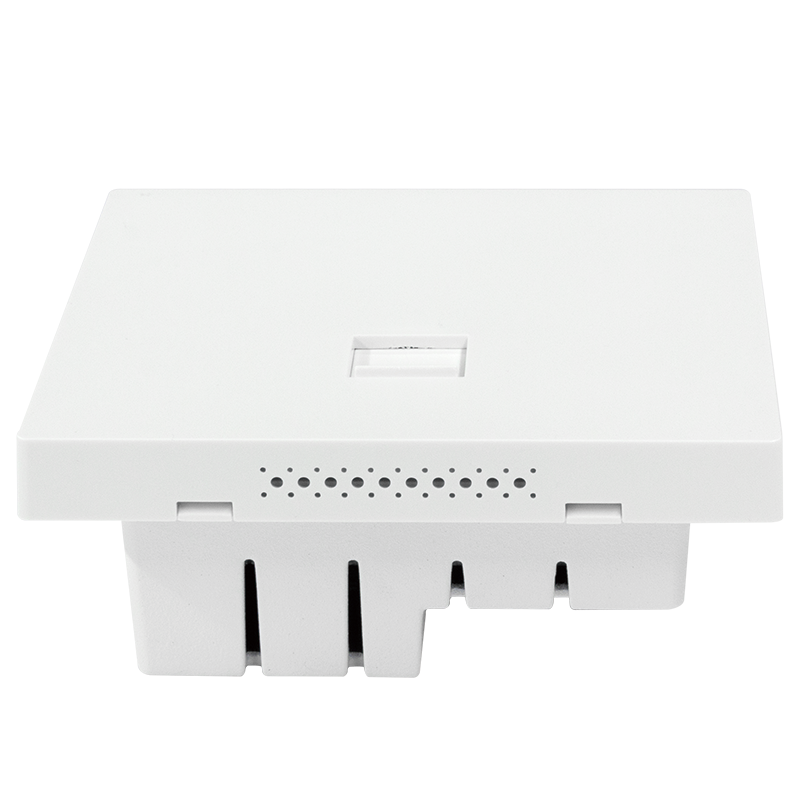

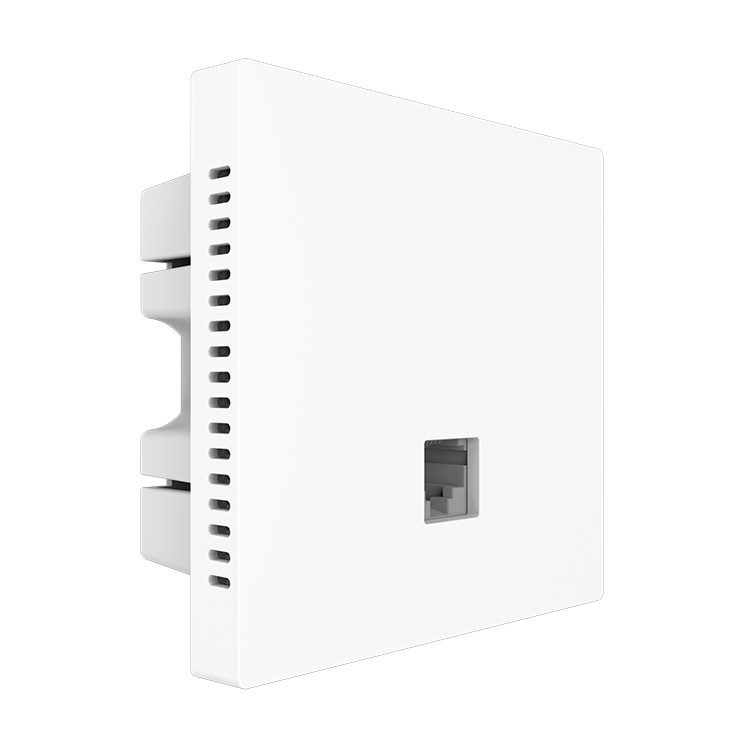

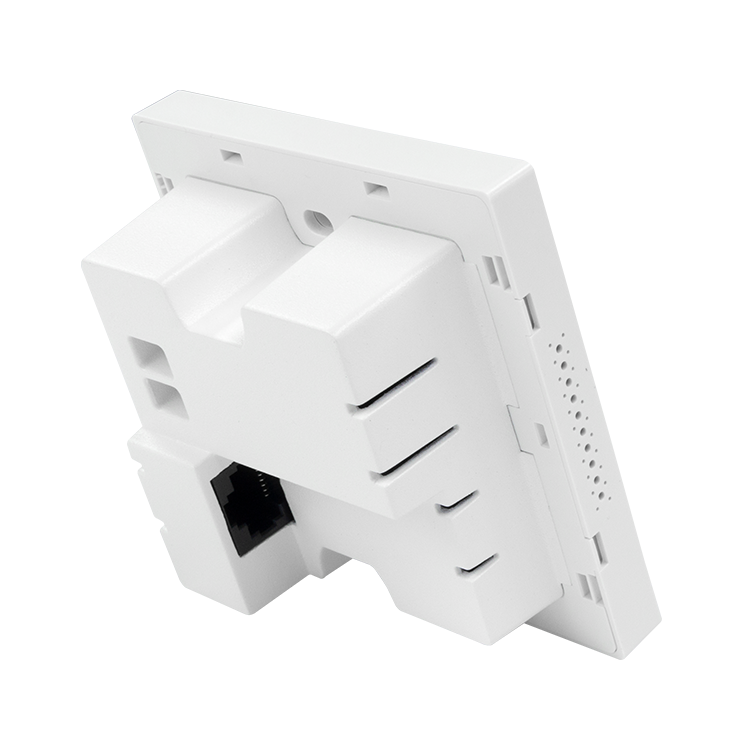

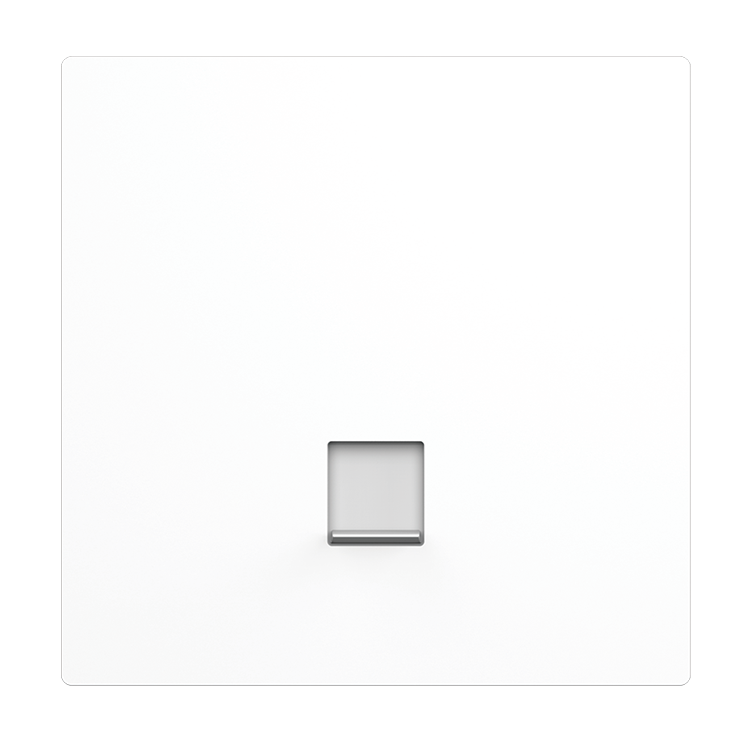

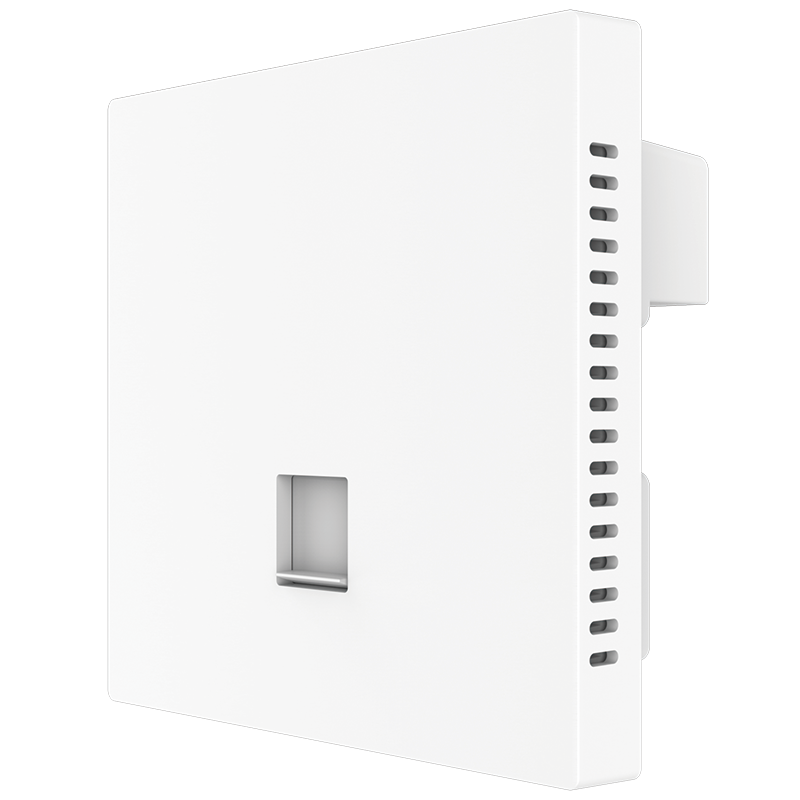

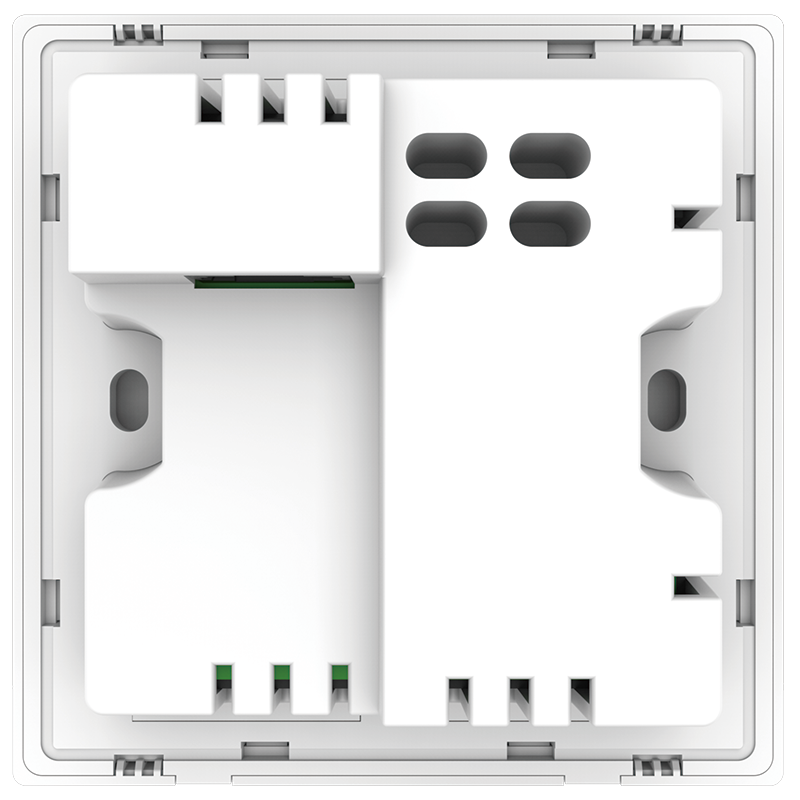

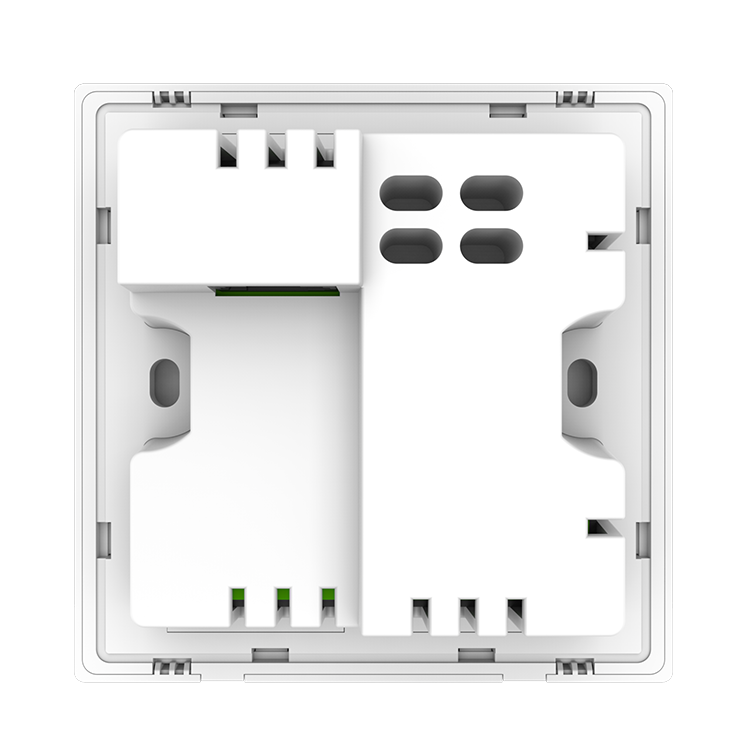

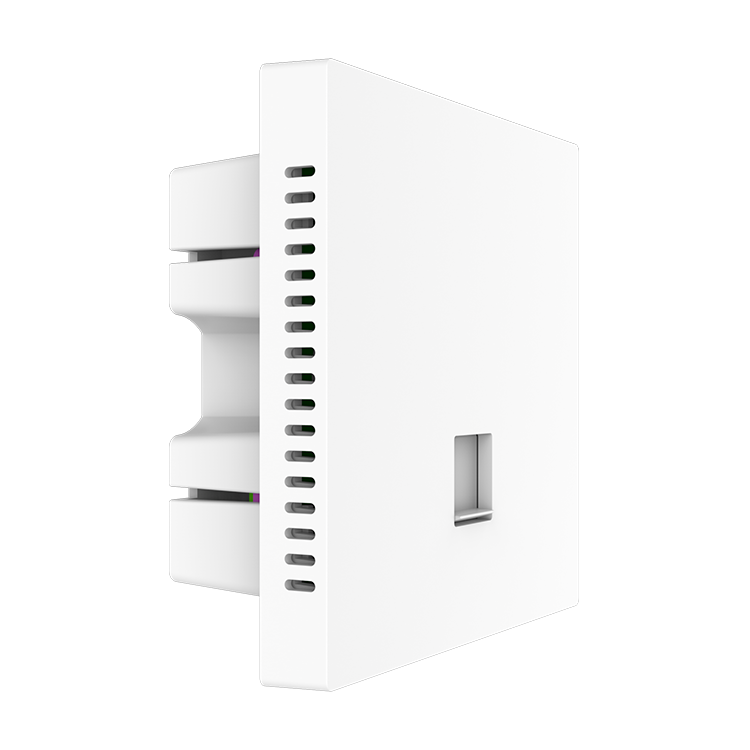

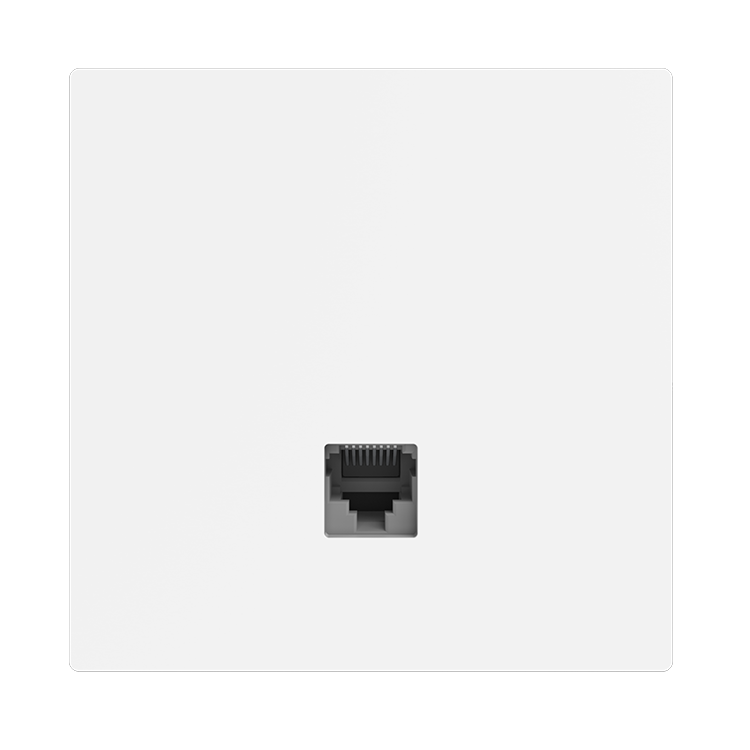

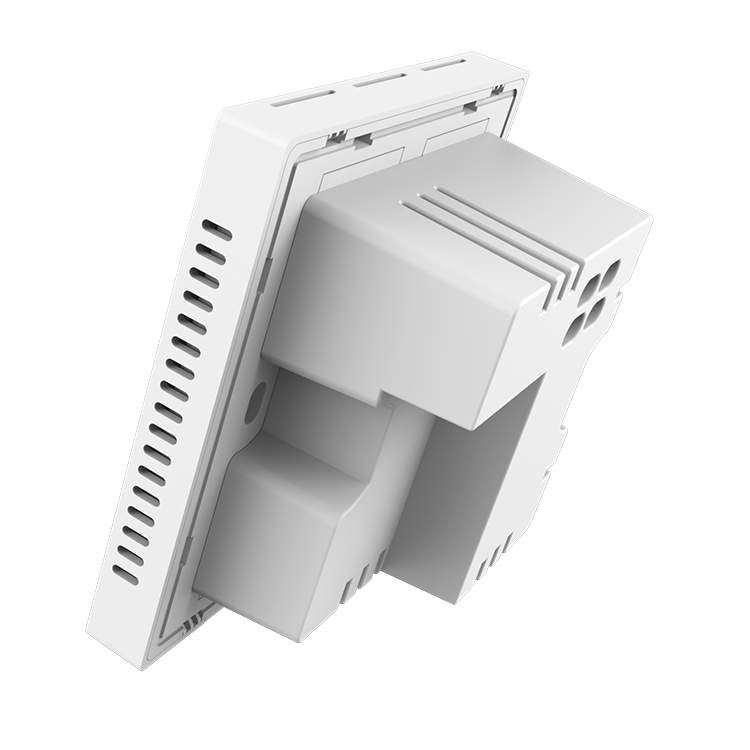

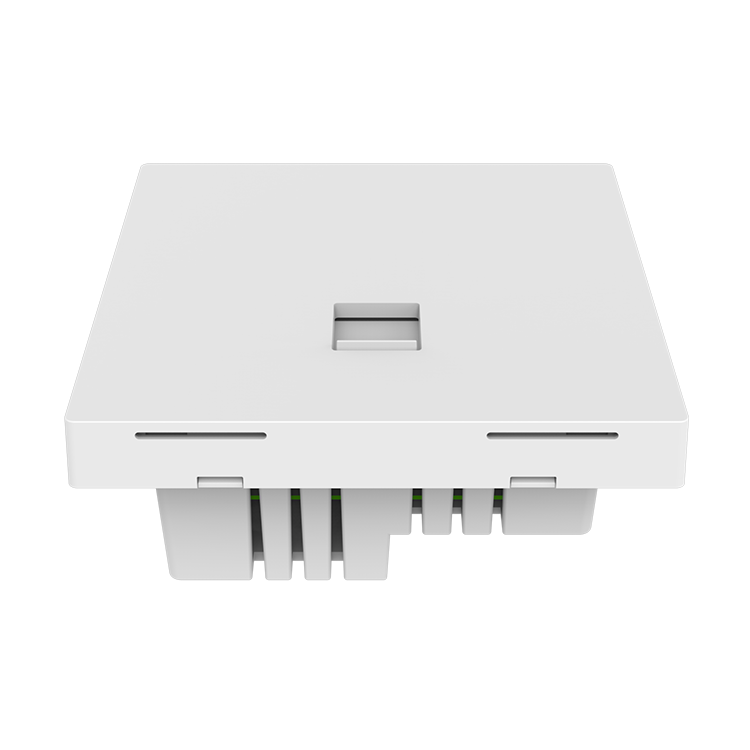

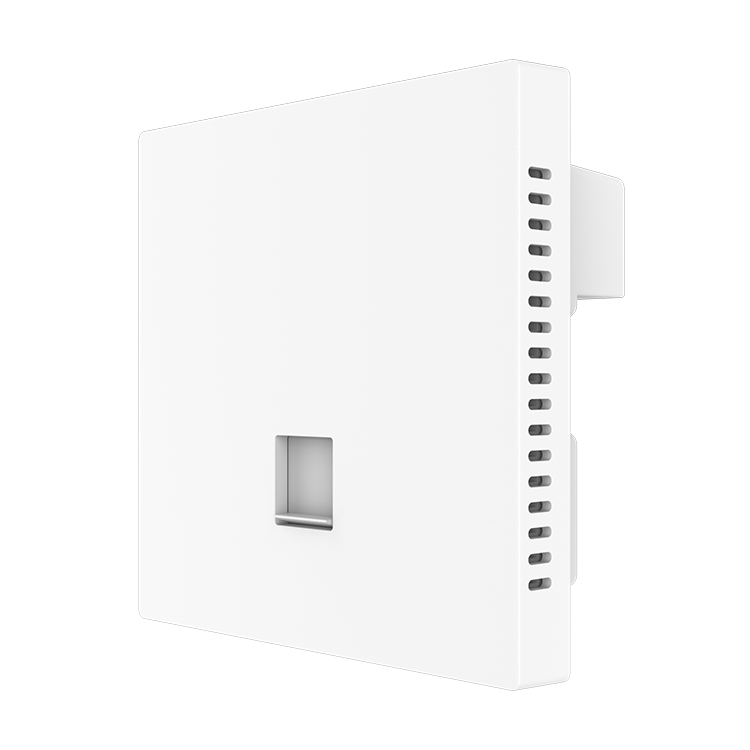

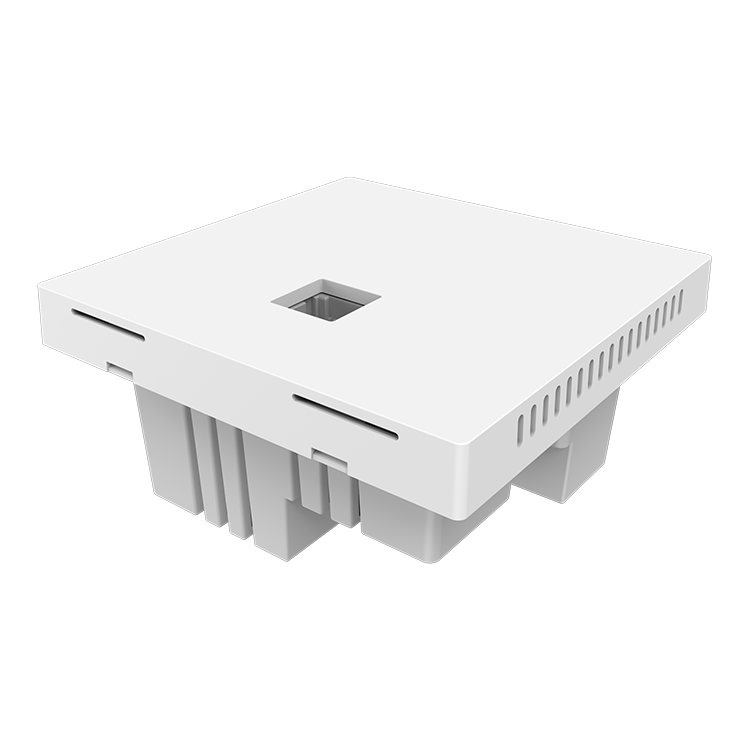

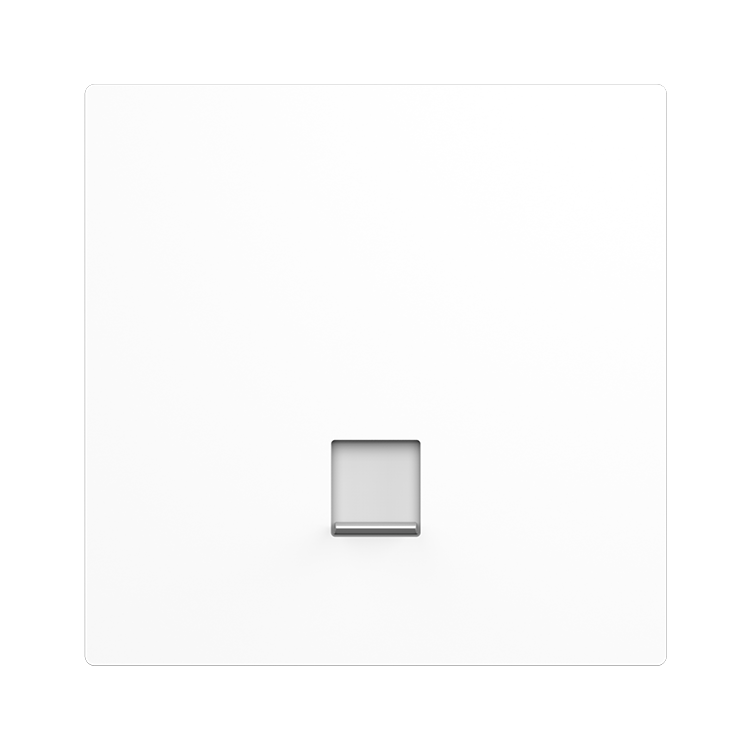

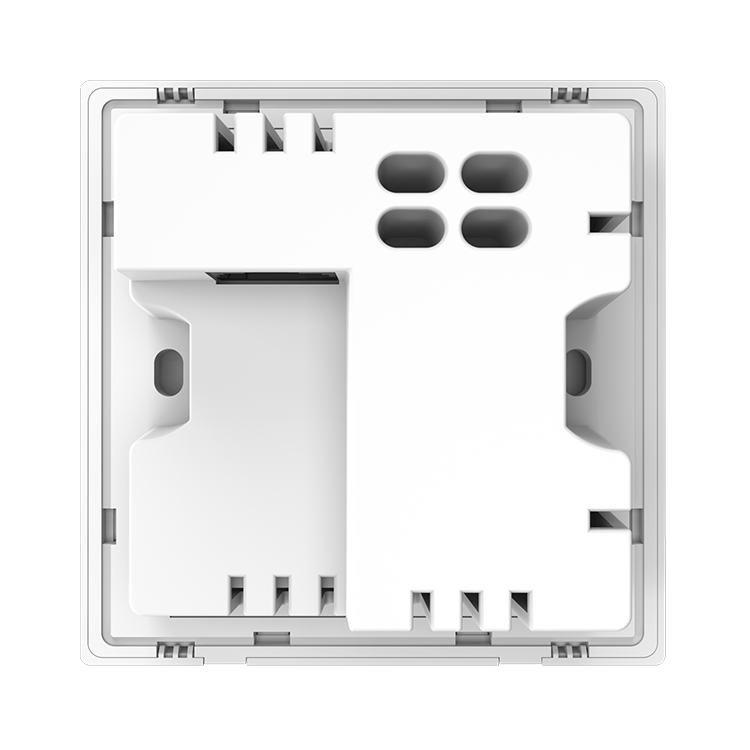

No need to replace the core routers, core switches and other equipment that have been installed and used. Panel APs can be directly installed on existing equipment for debugging. -
Configure wireless VLAN division to meet different Internet access requirements in different areas and improve security -
High compatibility, compatible with campus network system
