Campus All-Optical Network（POL）
One all‑optical network – ultra‑simple, stable, and reliable.
Demand Analysis
One network carries multiple services
It uniformly carries all services—data, voice, video, WiFi, and IoT—achieving versatile use of a single network.
All‑fiber transmission

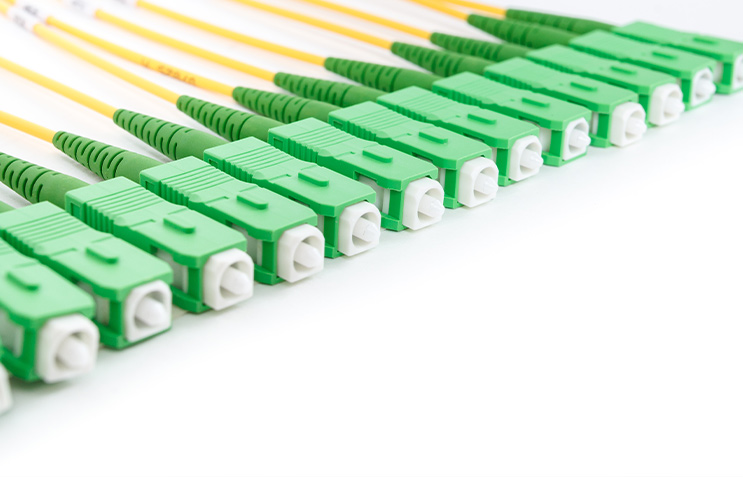

The intermediate links consist entirely of optical splitters and optical fibers, directly reaching the endpoint APs. This ensures interference resistance, high security/confidentiality, and eliminates intermediate points of failure
Layer‑2 flattened networking
Ultra‑simple network architecture, centralized management, flexible deployment, space savings in equipment rooms, and significantly reduced construction and maintenance costs.
Solution Introduction
An all‑fiber flat Layer‑2 network that supports data, voice, video, WiFi, and IoT on a unified platform, achieving simple networking, flexible deployment, and low‑cost O&M.

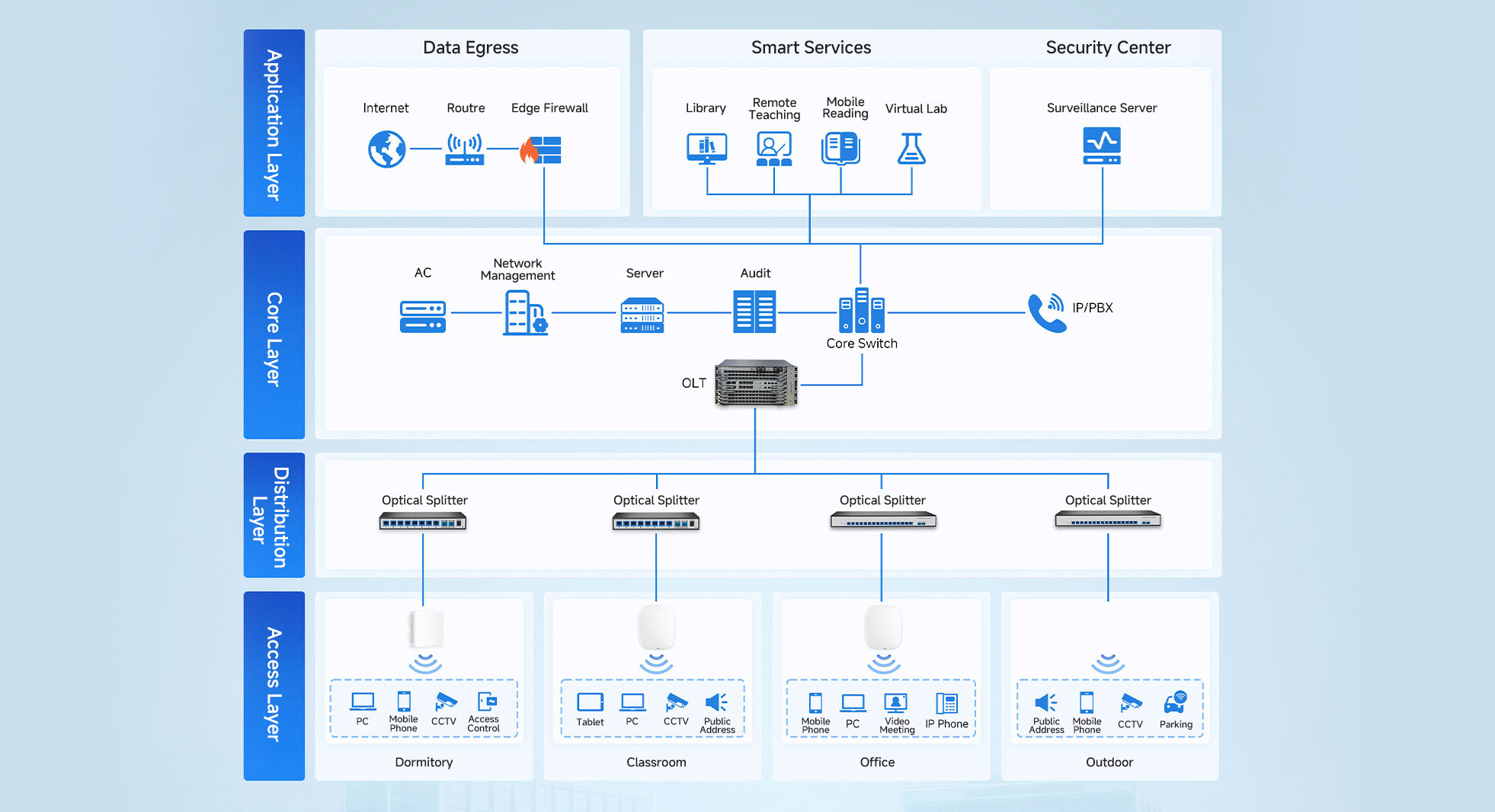

Campus All-Optical Network Topology Case
Solution Features
-

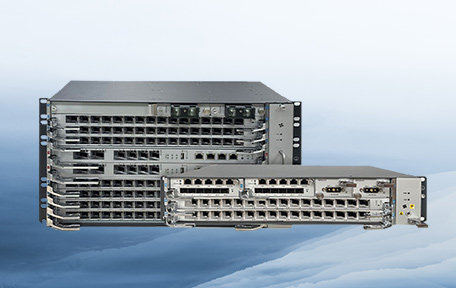

GPON/XGS‑PON optional, up to 100GE, STP/RSTP/MSTP, carrier‑grade Type B/C/D protection, 1+1 redundant AC power. -

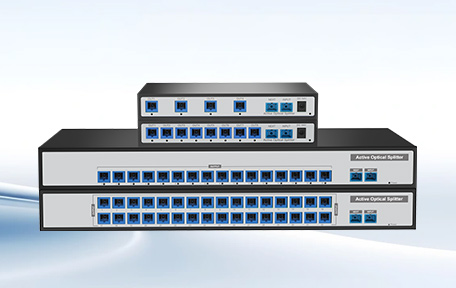

A wide range of split ratios—1:4, 1:8, and 1:16—are supported. Equipped with a 400W high‑power power supply, the system enables cascaded networking for more flexible deployment, and offers external power feeding via hybrid fiber‑optic cables (PoF). -

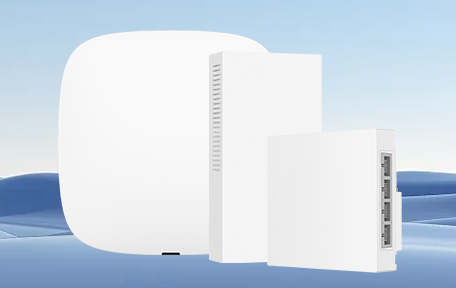

WiFi 6/7 from AX3000 to BE19000, PoF/DC power options, external output for door locks/IP phones, cloud/APP remote management.
