Specifications |

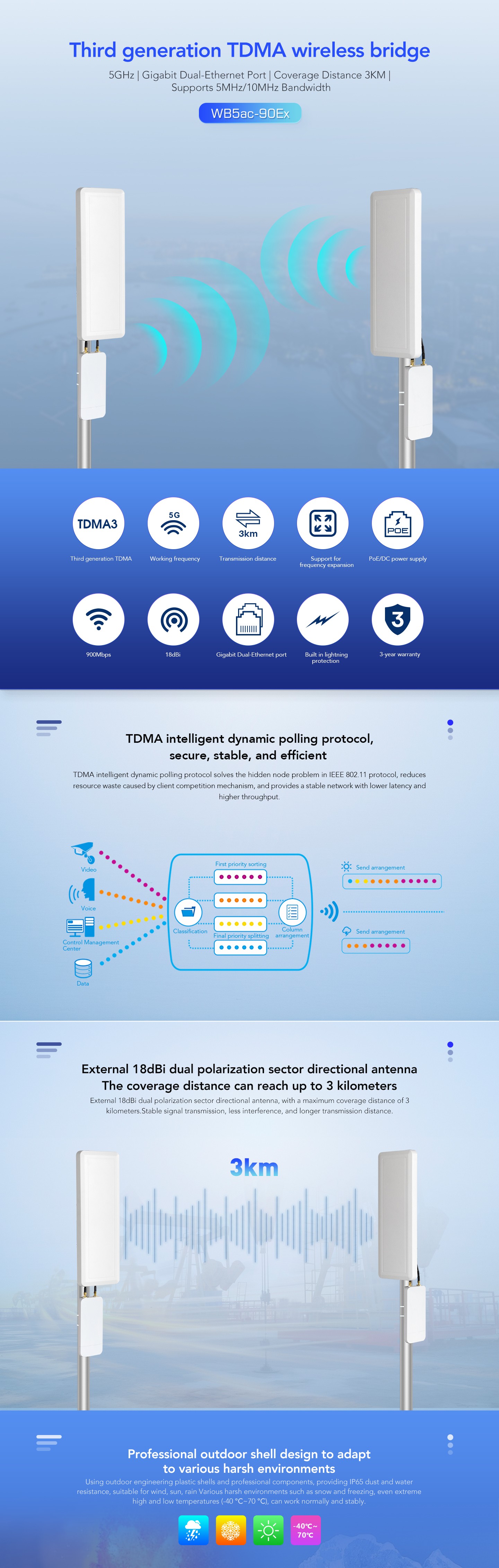

Product model | WB 5ac-90E |
CPU | QCA9563+ QCA9882+QCA8334 |
Flash | 16MB |
DDR | 64MB |
5G working frequency band | 5.150GHz~5.850GHz |
5G WIFI transmission protocol | 802.11 a / n /ac wave 2 |
top speed | 867Mbps |
antenna | Dual polarized Omni Antenna gain: 12dBi |
5G wireless power | 802.11a | 54M | 21±2dBm | 6M | 24±2dBm |
802.11n HT20 | MCS7 | 20±2dBm | MCS0 | 23±2dBm |
802.11n HT40 | MCS7 | 19±2dBm | MCS0 | 22±2dBm |
The 5G reception sensitivity | 802.11AC | MCS9 | 18±2dBm | MCS0 | 21±2dBm |
802.11a | 54M | -72dBm | 6M | -92dBm |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -89dBm |
5G EVM | 802.11a_54M: ≤-25 dB;802.11n_MCS7: ≤-28 dB;802.11AC_MCS9:≤-32dB |
frequency deviation (ppm) | ±20ppm |

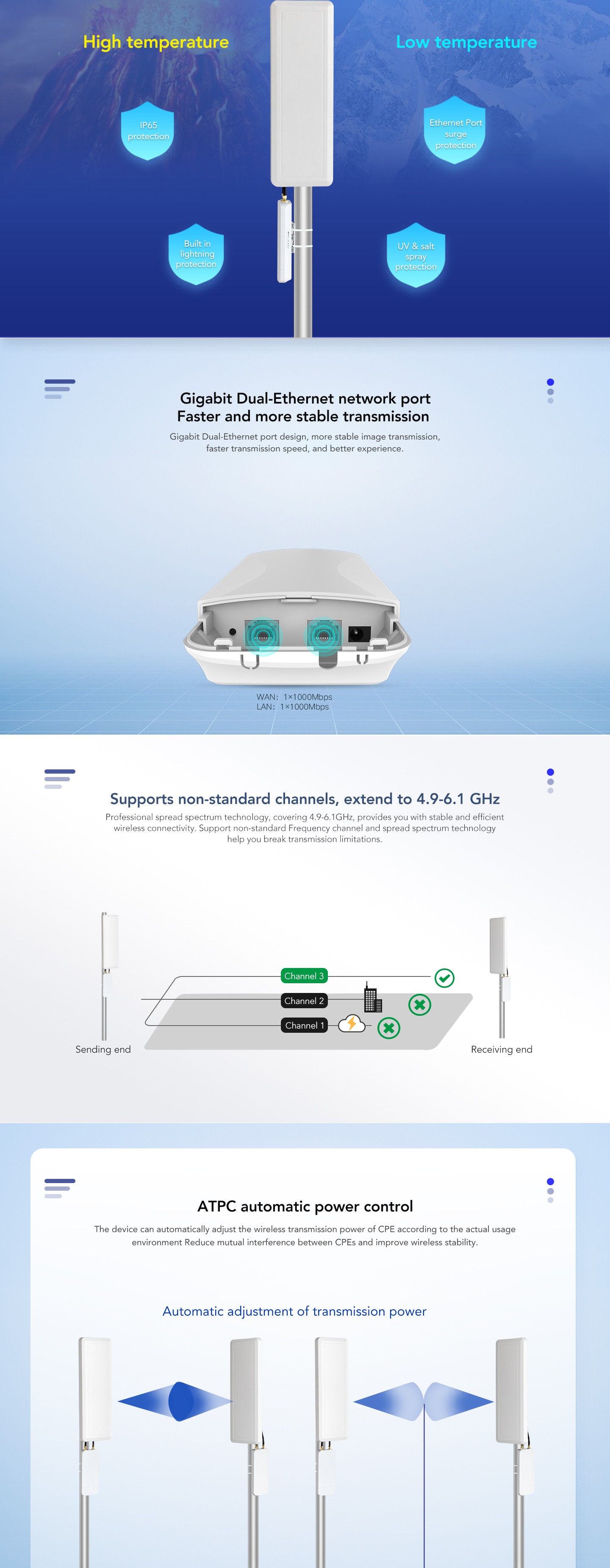

Interface | 1*10/1000M WAN ,1*1000M LAN |
supply electricity | PoE 24V-48V |
maximum power dissipation | < 15W |
Reset Button | Press 10 seconds to reset ,press 2-5 seconds to pair |
Status indicator light | System,LAN,WAN,5G WIFI,signal*4 |
Product size | 196mm*86mm*40mm |
weight | 0.4kg |
work environment | Normal operating temperature: -30°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation) |
levels of protection | IP65 |
ESD | Air discharge + / -8K, contact discharge + / -6K |
surge | Co-mode 4K and differential mode 2K |
