Chipset

MT7621DAT+MT7615D

Standard

802.11ac/b/g/n, MIMO technology

Memory

128MB

Flash

SPI NOR 8MB

Interface

1 * 10/100/1000Mbps RJ45 WAN Port

1 * 10/100/1000Mbps RJ45 LAN Port

1 * Reset button, press 15 seconds to revert to default setting

Antenna

Build in 5dBi 2.4GHz MIMO Antenna

Build in 4dBi 5.8GHz MIMO Antenna

Size

168mm * 168 mm * 32 mm

POE

48V  0.5A

DC

12V  1A

LED Indicator

Sys, 2.4G WIF, 5.8G WIFI, LAN, WAN

Max Power Consumption

< 10W

ESD

±6KV

RF Data

Frequency

2.4G:802.11b/g/n: 2400MHz~2484MHz

5GHz:802.11a/n/ac: 5150MHz ~5850MHz

Country code

FCC、IC、ETSI、MKK、MKK1、MKK2、MKK3、NCC、RUSSIAN、CN

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM

DSSS = DBPSK, DQPSK, CCK

Throughput

1200Mbps

RF Power (2.4GHz)

<20dBm

RF Power (5GHz)

<23dBm

PPM

±20ppm

Max Users

128+

Others:

Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

Environment

Operating Temperature: -20~45 ℃

Storage Temperature: -40~70 ℃

Storage Humidity: 5%~95% non-condensing

Management

Firmware GUI , Remote Management, WLAN Controller, Cloud Management System

Firmware Features:

Operation mode

Wireless AP: Plug and Play.

Gateway: Dynamic IP/Static IP/PPPoE

Wireless Functions

Multiple SSID functions: 2.4GHz: 4;  5.8GHz: 4

Support SSID hidden

Support SSID broadcast

Support 5G Prior for a faster Ethernet.

Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

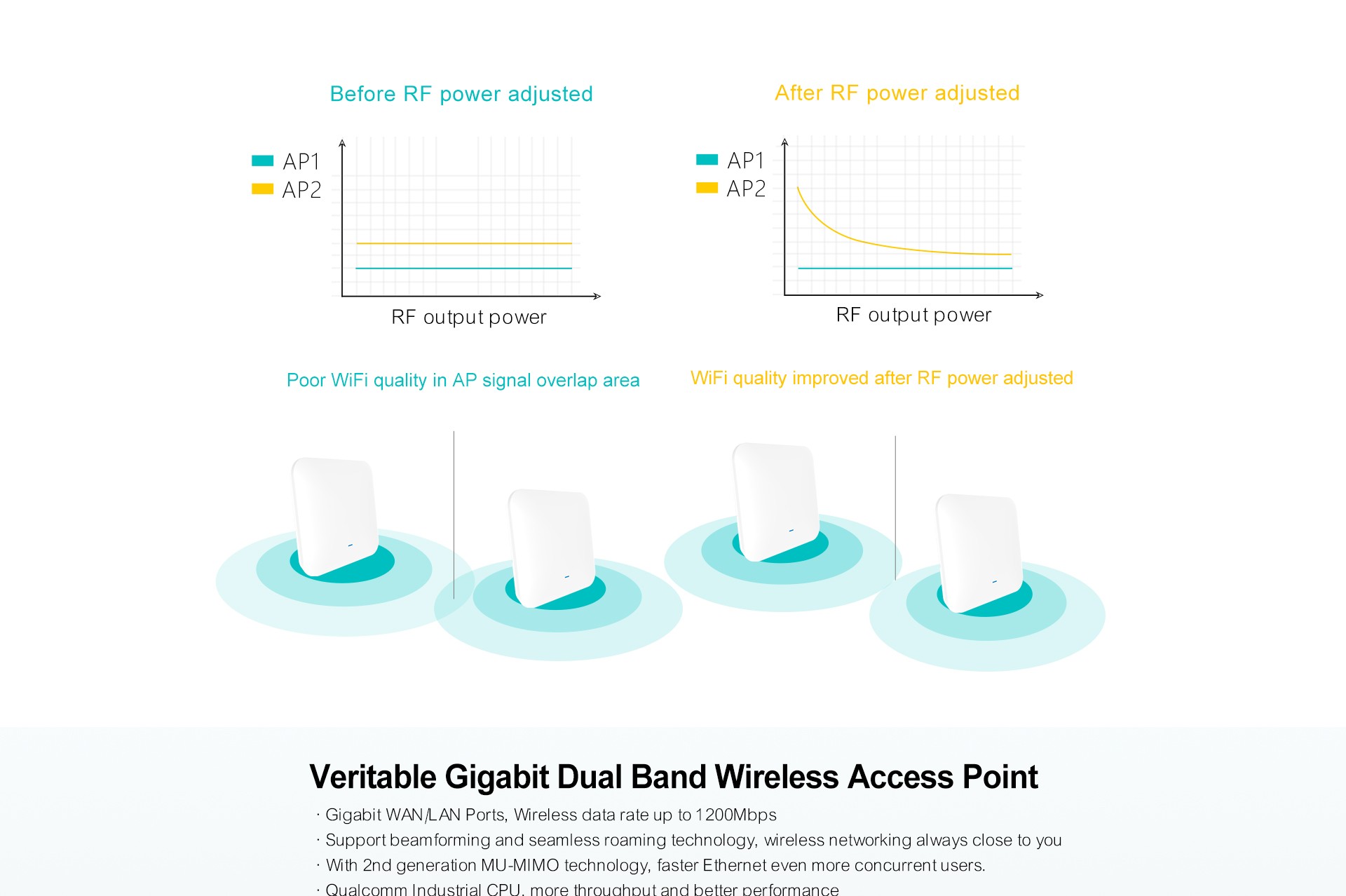

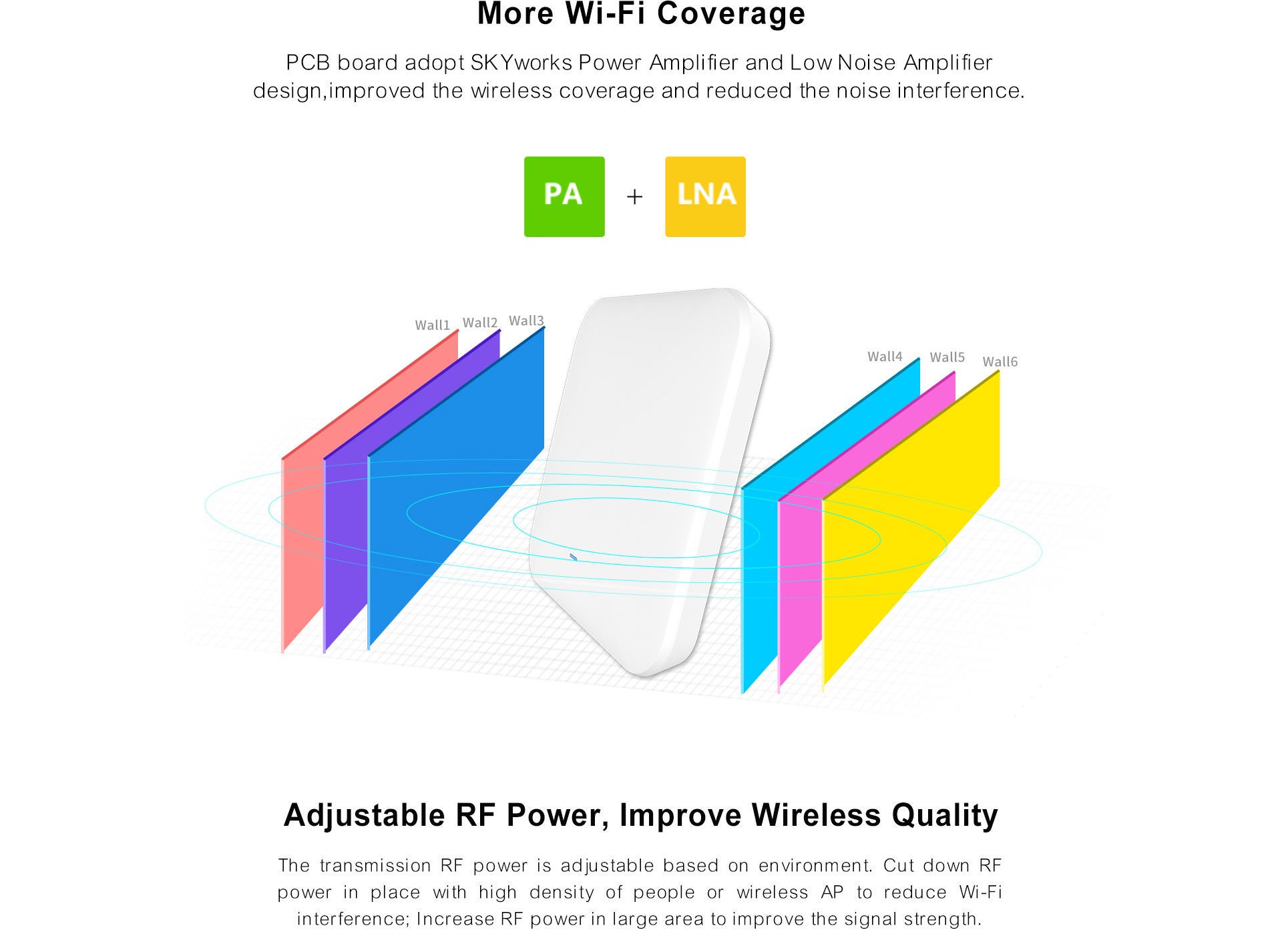

Support RF power adjustable, adjust the RF power based on environment.

Short GI Enable and Disable

Support user quantity limited, Max 128 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4
