Port configuration |

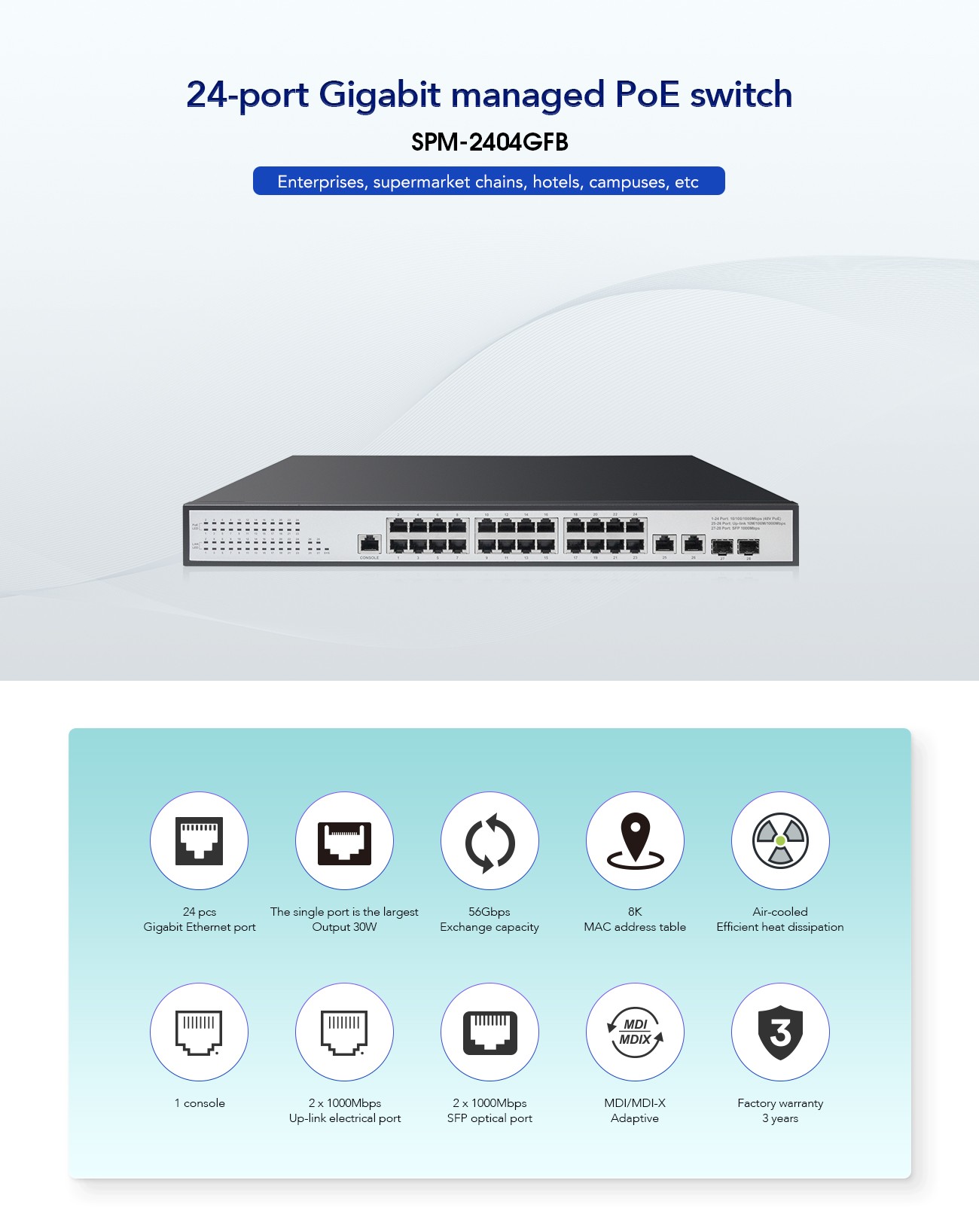

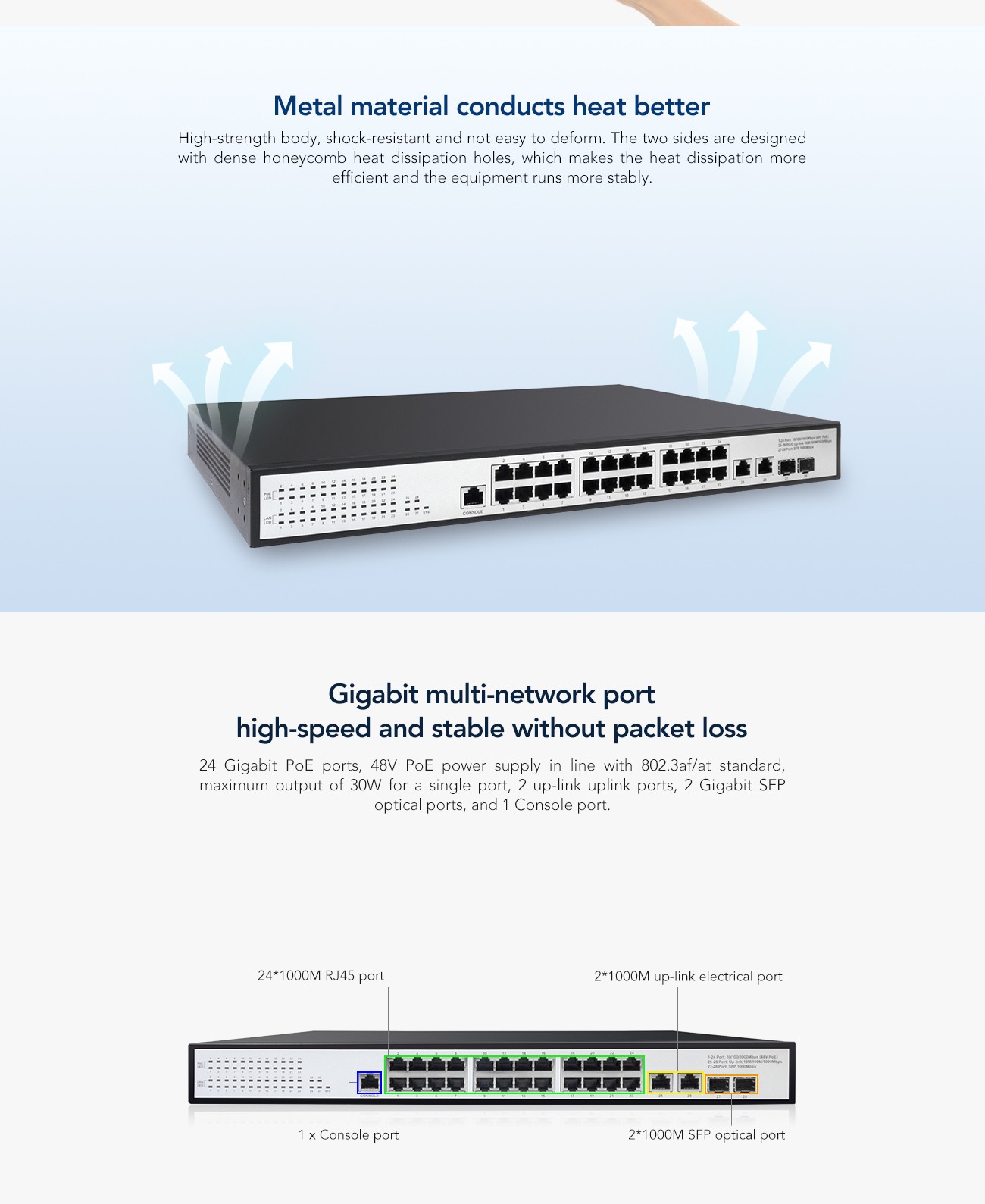

Gigabit Port | 24 |
Gigabit SFP Port | 2 |
Disable/ Enable Port | Support |
Port auto-negotiation | Support |
Supports forced port mode and rate |
Port flow control | Support full-duplex IEEE 802.3x flow control |
Supports half-duplex backpressure flow control |
Broadcast storm control | Supports rate limiting of broadcast, multicast and DLF packets |
Port storm suppression | Supports the detection of broadcast packets, multicast packets and unicast packets of the port respectively, and closes the port when exceeding the threshold. |
Port mirroring | Support |
Port speed limit | Support port input and output port speed limit |
Link aggregation | Support manual link aggregation |
Support LACP dynamic link aggregation |
Supports up to 8 aggregation groups, each group supports up to 8 ports |
Supports source MAC, destination MAC, source and destination MAC, source IP, destination IP, source and destination IP routing strategies |
Port protection | Each port can be configured as an isolated protection port. |
Redundant port | Support |
Jumbo Frame | Supported, can support up to 16K data packets |
Detect network cable distance | Support |
POE Power |
Switch control | Supports opening and closing port POE power supply |
Power Control | Support setting total power |
Other advanced features | Support setting the POE scheduling policy of the port and supporting PD online query |
MAC configuration |
MAC table | 8K |
MAC table manage | Support |
Forwarding mode | Support IVL forwarding mode |
Static MAC Address | Support |
MAC band | Support |
MAC filter | Support |
MAC learning control | Control the number of MAC learning based on the port |
VLAN configuration |
VLAN quantity | 4K |
802.1q-based VLAN | Support |
MAC-based VLAN | Support |
IP-based VLAN | Support |
Protocol-based VLAN | Support |
Voice VLAN | Support |
VLAN mapping | Support 1:1 mapping |
Double VLAN tagging | Support basic QinQ |
Support flexible QinQ |
Reliability protocol |
Spanning tree protocol | Support STP/RSTP/MSTP |
Port loop detection | Support |
EAPS protocol | Support RFC3619 |
ERPS protocol | Support G.8032/Y.1344 |
LLDP protocol | Support LLDP及LLDP-MED |
UDLD protocol | Fully compatible with CISCO's UDLD protocol |
Host routing |
ARP | Supports static and dynamic ARP |
Static routing | Supported, Layer 3 forwarding is not supported |
VLAN interface | Support 32 VLAN interfaces |
Multicast functions and protocols |
Static multicast MAC address | Support |
IGMP SNOOPING | Support |
MLD SNOOPING | Support |
MVR | Support |
GMRP protocol | Support |
ACL access control list |
Standard IP-based ACL | Support |
Extended IP-based ACL | Support |
MAC IP based ACL | Support |
MAC ARP based ACL | Support |
ACL port filtering | Support |
Time-based ACL | Support |
QoS Service Qualtiy |
Number of port queues | 8 |
Port queue scheduling method | Support WRR, SP, WFQ scheduling modes. |
Port based classification | Support |
Based on 802.1p classification | Support |
Based on DSCP (DiffServ) classification | Support |
Classification of data flows based on ACL | Support |
QoS policy | Support mapping data packets to corresponding output queues |
Support modifying COS and DSCP flags of data packets |
Support data stream speed limit |
Support statistics of data flow |
Support mirroring of data streams |
DHCP |
DHCP Client | Support |
DHCP Snooping | Support |
DHCP Relay | Support |
DHCP Server | Support |
DHCP option 82 | Support |
Management features |
CLI management | Support serial port management switch |
Support TELNET management switch |
Support SSH management switch |
WEB management | Support |
SNMP management | Support SNMP v1, v2c, v3 |
Support SNMP TRAP |
Supports rich standard and private MIBs |
User management | Support multi-user management |
TACACS+ | Supports switch remote username and password authentication through TACACS+ server |
Supports PAP and CHAP password encryption |
Support TACACS+ server to authorize commands to the switch |
Log management | Support local log management |
Supports SYSLOG IPv4 and IPv6 |
RMON | Support RMON 1, 2, 3, 9 groups |
Cluster management | Support neighbor discovery protocol |
Support topology discovery protocol |
Supports manual and automatic joining of cluster groups |
Support unified management of clusters |
OAM | Support 802.3ah |
Support 802.1ag |
Configuration file upload and download | Support |
Upgrade software | Support |
Clock management | Support local clock management |
Support SNTP protocol to obtain clock |

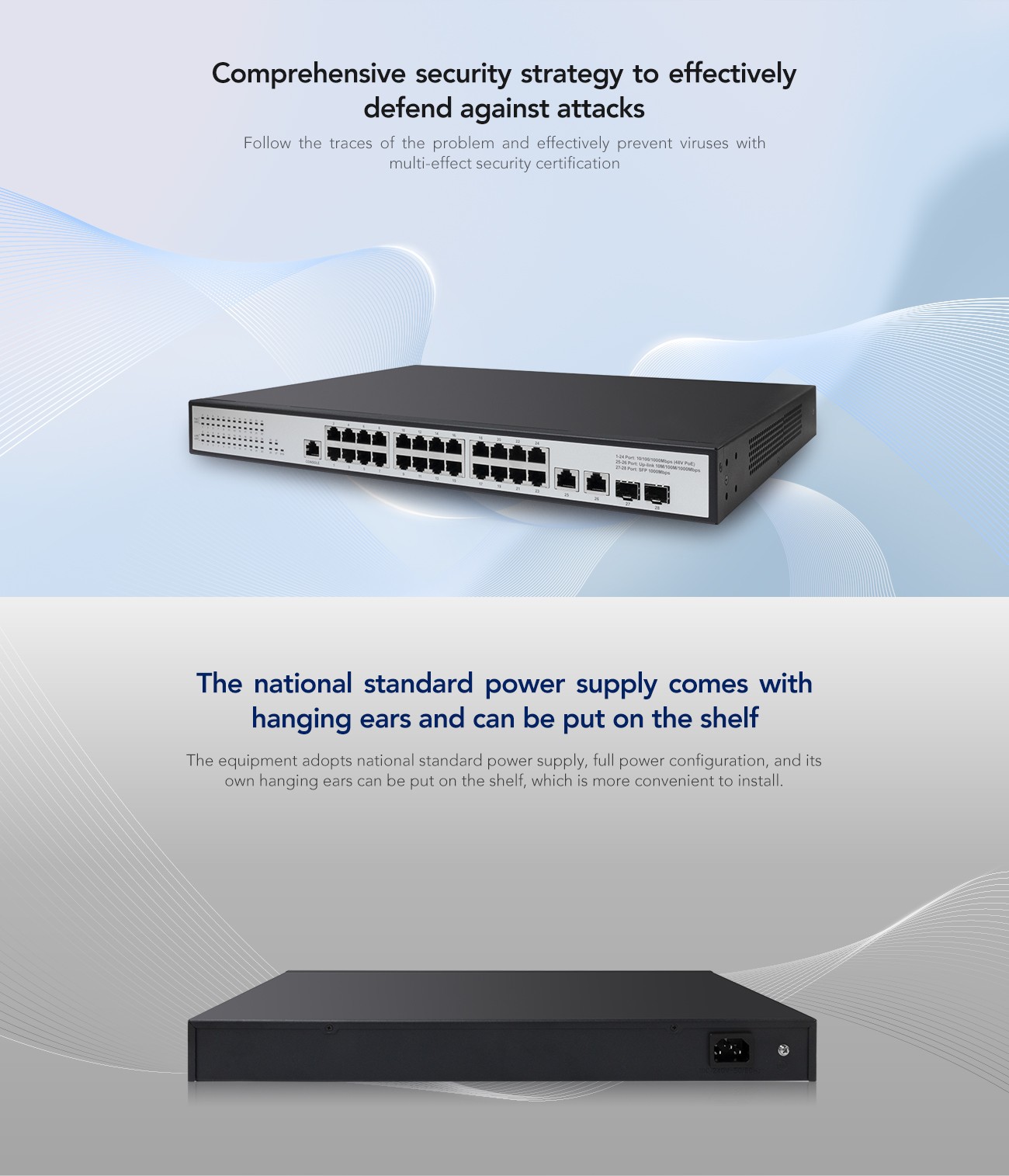

Security features |
Switch management security | Support opening and closing TELNET, WEB and SNMP services |
Supports TELNET, WEB and SNMP services to be bound to standard IP ACLs |
Supports limiting the number of TELNET connections |
CPU protection | The switch's own security protection prevents attacks by big data flows on the switch itself. |
AAA | Support 802.1x protocol |
Support RADIUS protocol |
Supports authentication, authorization and accounting via RADIUS server |
Supports port-based and MAC-based 802.1x |
Support 802.1x guest VLAN |
IP MAC band | Support static configuration of binding between IP, MAC and port |
DHCP SNOOPING | Support dynamic ARP binding to prevent ARP spoofing |
Support dynamic IP, MAC and port binding |
Support fixed port connection to DHCP server to prevent private connection to DHCP server |
Prevent ARP spoofing | Supports manual configuration of MAC ARP-based ACL rules to prevent ARP spoofingSupport fixed port connection to DHCP server to prevent private connection to DHCP server |
Supports DHCP SNOOPING function. During the process of obtaining an IP address through DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing. |
IPv6 |
IPv6 address | Supports manual configuration and stateless address automatic configuration |
IPv6 Neighbor Discovery Protocol | Support |
ICMPv6 protocol | Support |
IPv6 Route Discovery Protocol | Support |
