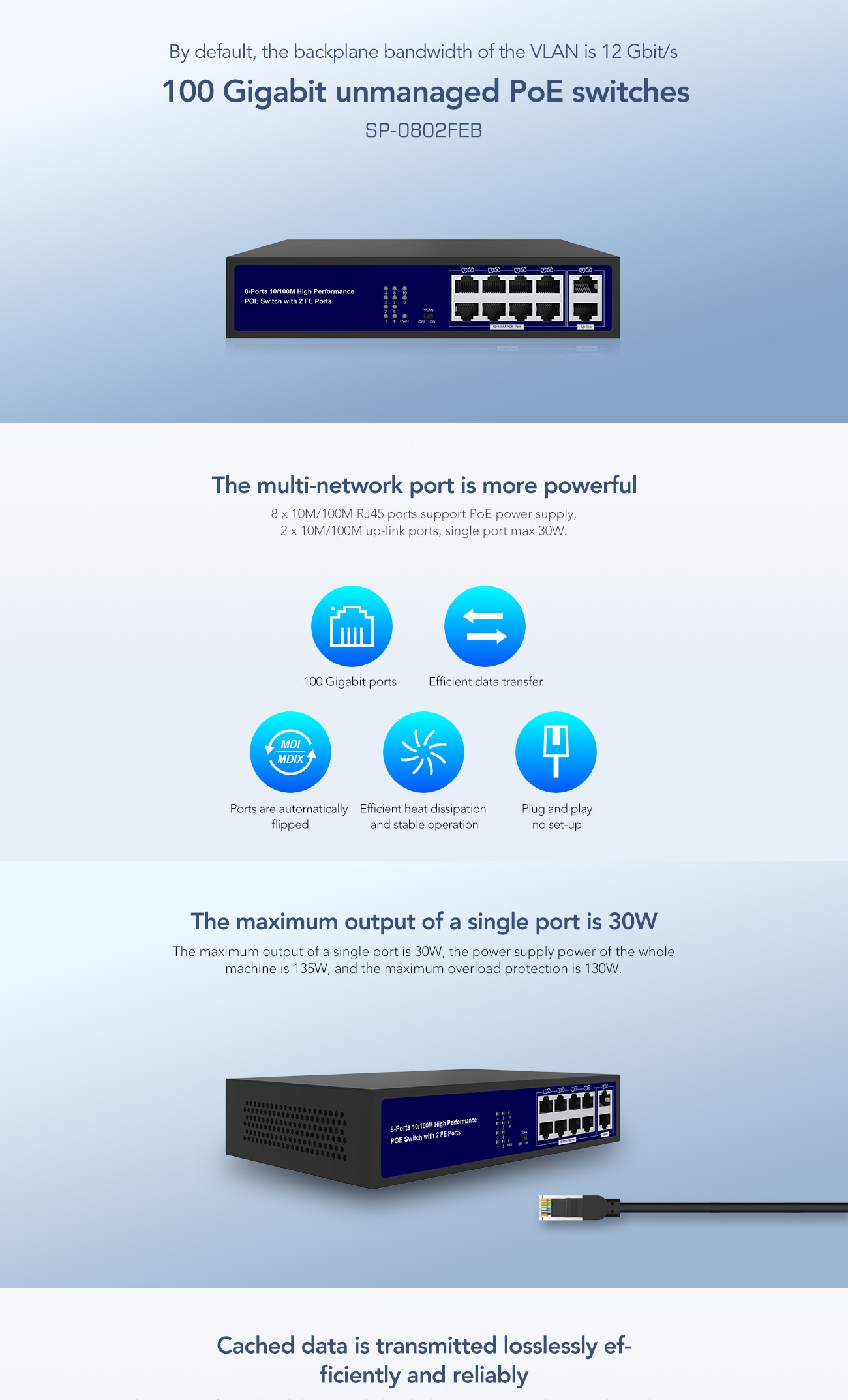

8 Ports 100Mbps unmanaged POE switch-Products-Shenzhen Yunlink Technology Co., Ltd.©2023



Model	SP-0802FEB
Standard	IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX faster Ethernet ANSI/IEEE 802.3 NWay Auto-Negotiation
Ports	8* 10/100M auto Negotiation /auto MDI/MDIX Ethernet Ports
	2* 10/100M auto Negotiation /auto MDI/MDIX up-link Port
	1 * VLAN switch
Cable requirement	10BASE-T: UTP 3, 4, 5 cable (≤100 meters)
Cable requirement	100BASE-TX: UTP 5 cable (≤100 meters)
Advanced Functions	Support storage forwarding
	MAC Address Auto-Learning and Auto-Aging.
	IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Backplane Bandwidth	16Gbps
MAC Address Table	2K
Forwarding Rate	10BASE-T:14800pps/port
Forwarding Rate	100BASE-TX:148000pps/port
LED Indicator	PWR LINK for each port
Size(LWH)	290mm180mm44.5mm
Working Environment	Working Temperature: 0℃~40℃
	Storage Temperature: -40℃~70℃
	Working Humidity: 10%~90% No Condensation
	Storage Humidity: 5%~90% No Condensation
