WiFi 5 Dual Band Wireless Router-Products-Shenzhen Yunlink Technology Co., Ltd.©2023

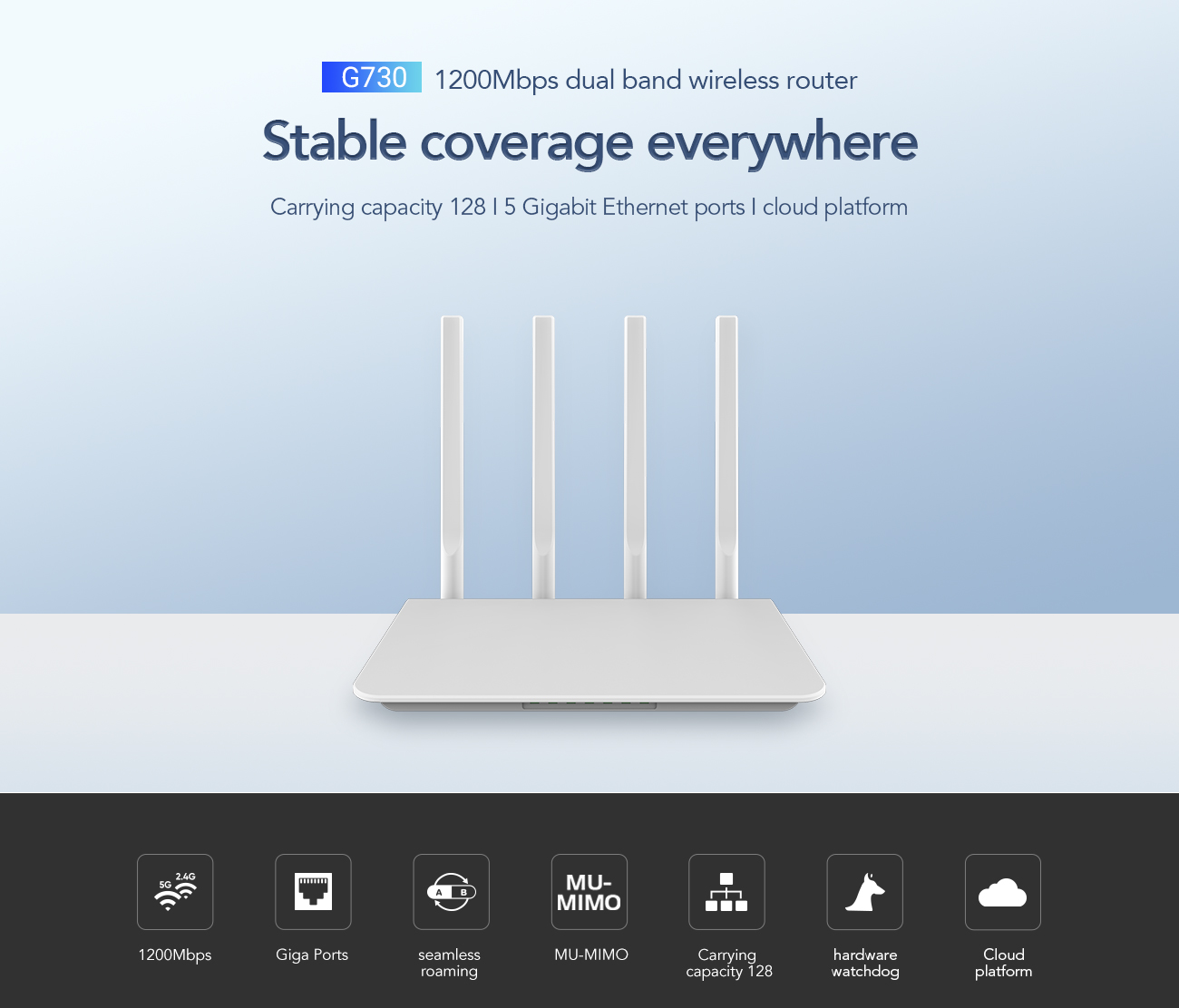

Model	G730
CPU	MT7621AT
Flash	SPI NOR 16MB
DDR3	128MB
2.4G Frequency	2.4GHz ~ 2.484GHz
2.4G Protocol	802.11 b / g / n / ax
5G Frequency	5.150GHz～5.850GHz
5G Protocol	802.11 a / n / ac / ax
2.4G Antenna	2*5dBi
5G Antenna	2*5dBi
Data Rate	2.4GHz: 574Mbps, 5GHz:1201Mbps
2.4G TX Power	802.11b	11M	20±2dBm	1M	20±2dBm
	802.11g	54M	19±2dBm	6M	20±2dBm
	802.11n HT20	MCS7	18±2dBm	MCS0	20±2dBm
	802.11n HT40	MCS7	17±2dBm	MCS0	19±2dBm
	802.11ax HT20	MCS9	17±2dBm	MCS0	19±2dBm
	802.11ax HT40	MCS11	16±2dBm	MCS0	18±2dBm
5G TX Power	802.11a	54M	18±2dBm	6M	20±2dBm
	802.11n HT20	MCS7	17±2dBm	MCS0	19±2dBm
	802.11n HT40	MCS7	16±2dBm	MCS0	18±2dBm
	802.11ac HT80	MCS9	15±2dBm	MCS0	17±2dBm
	802.11ax HT80	MCS11	14±2dBm	MCS0	16±2dBm
2.4G Receiving Sensitivity	802.11b	11M	-85dBm	1M	-92dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
	802.11ax HT20	MCS11	-60dBm	MCS0	-85dBm
	802.11ax HT40	MCS11	-56dBm	MCS0	-85dBm
5G Receiving Sensitivity	802.11a	54M	-72dBm	6M	-92dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-90dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ac HT80	MCS9	-58dBm	MCS0	-85dBm
	802.11ax HT80	MCS11	-55dBm	MCS0	-84dBm
2.4G EVM	802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28 dB; 802.11ax:≤-35 dB
5G EVM	802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB ; 802.11ax:≤-35 dB
ppm	±20ppm

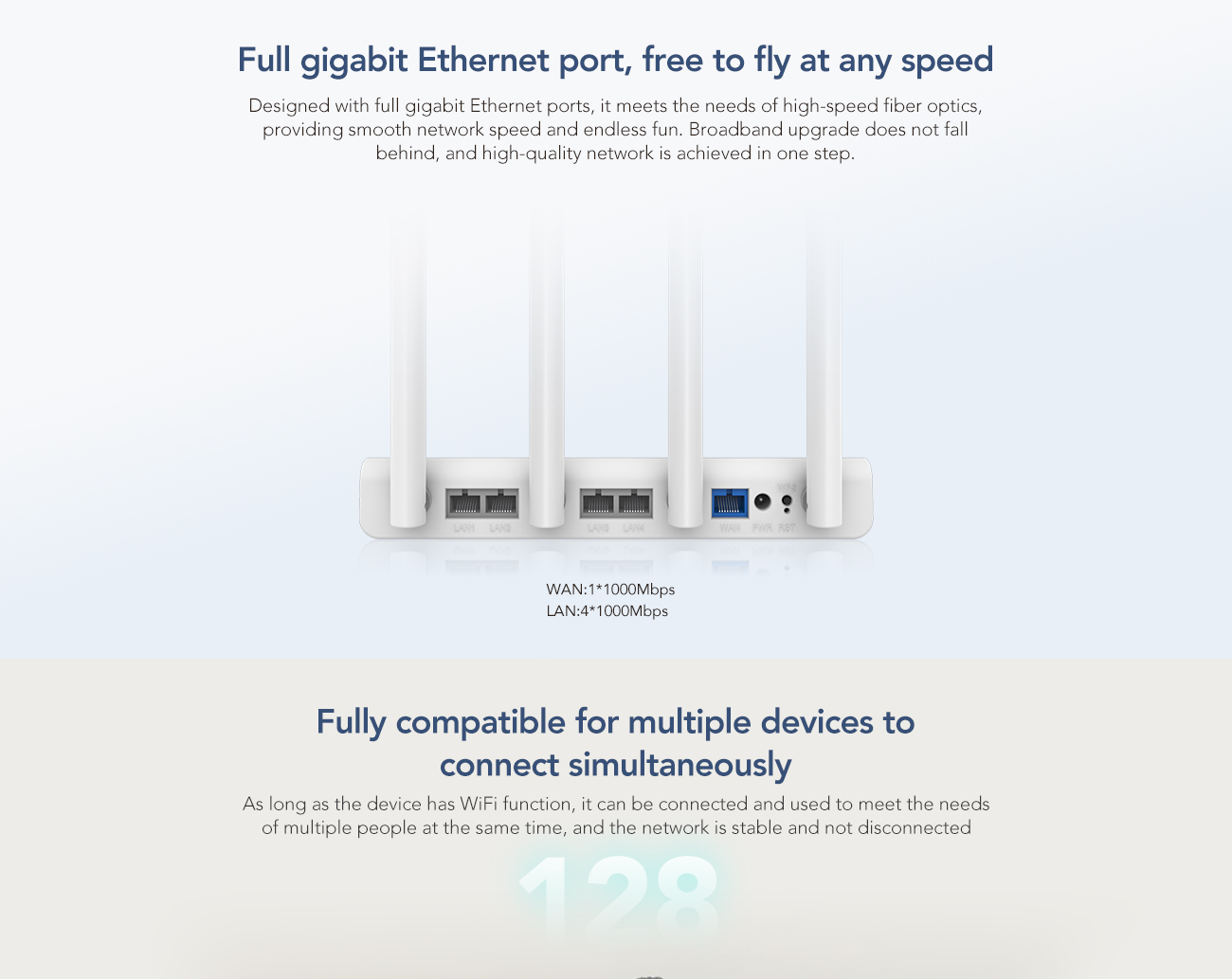

WAN	1个10/100/1000 WAN
LAN	4个10/100/1000M LAN
Reset	Reset to factory settings by pressing 6-10 seconds
Indicators	SYS, WIFI, WAN, LAN
Power	DC 12V/1.5A
Max Power Consumption	< 15W
Size	200mm×125mm×190mm
Weight	0.35kg
Temperature	Working: -20°C to 40°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
ESD	Air:±8K, Touch:±4K
Electrical Surge	Common Mode: 2K, Differential Mode: 1K
