WiFi 5 Dual Band Desktop Router-Products-Shenzhen Yunlink Technology Co., Ltd.©2023

M310详情页EN_01.jpg M310详情页EN_02.jpg




Model	LTE-M310
CPU	MT7628DAN+MT7613BEN
Flash	SPI NOR 8MB
DDR	64MB
2.4G working frequency	2.4GHz ~ 2.484GHz
2.4G WIFI protocol	802.11 b / g / n
5G working frequency	5.150GHz～5.850GHz
5G WIFI protocol	802.11 a / n / ac

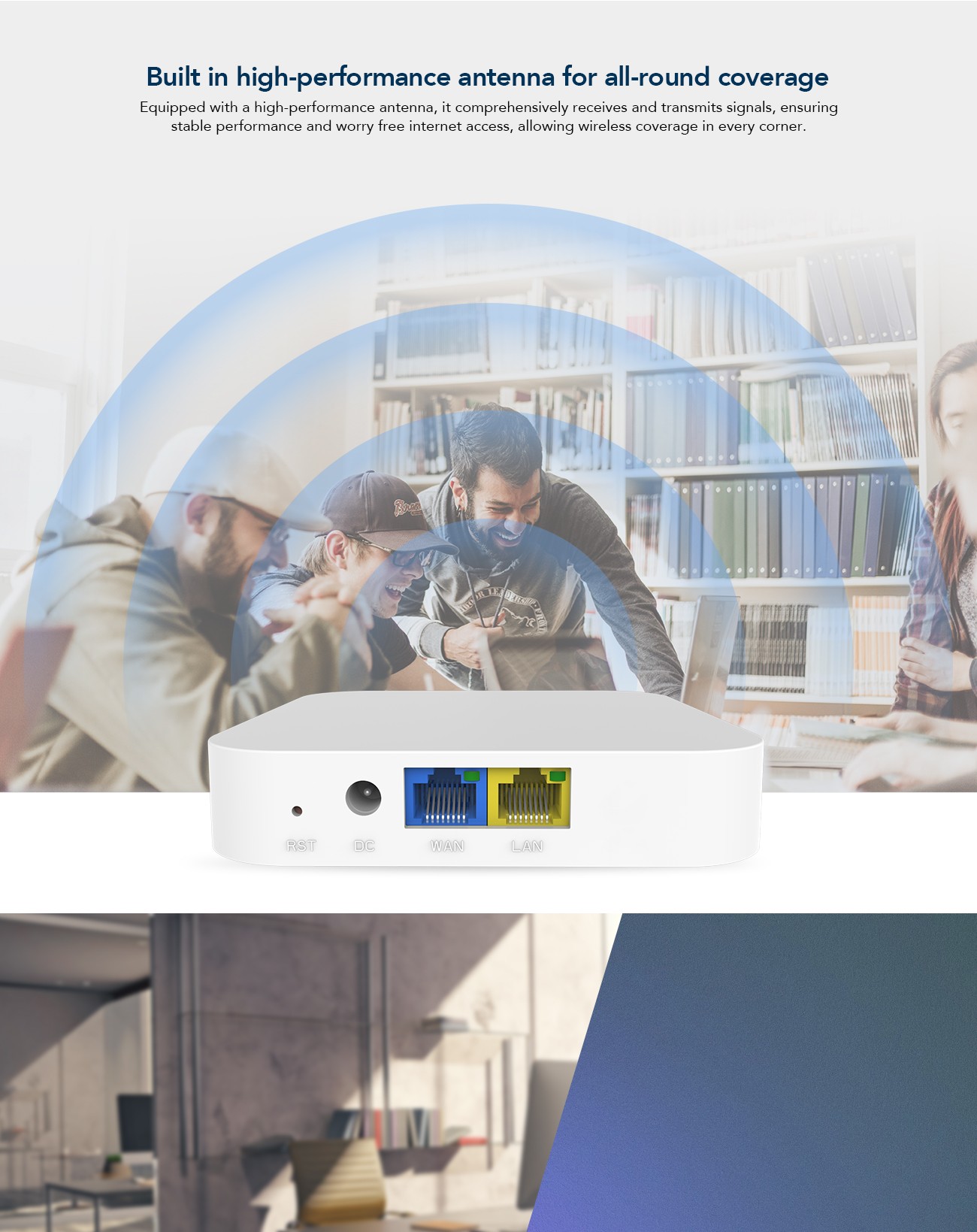

WiFi Antenna	Built-in 2.4GHz/5GHz dual band antenna*2: 4dBi
4G Antenna	Built-in 4G antenna*2: 3dBi

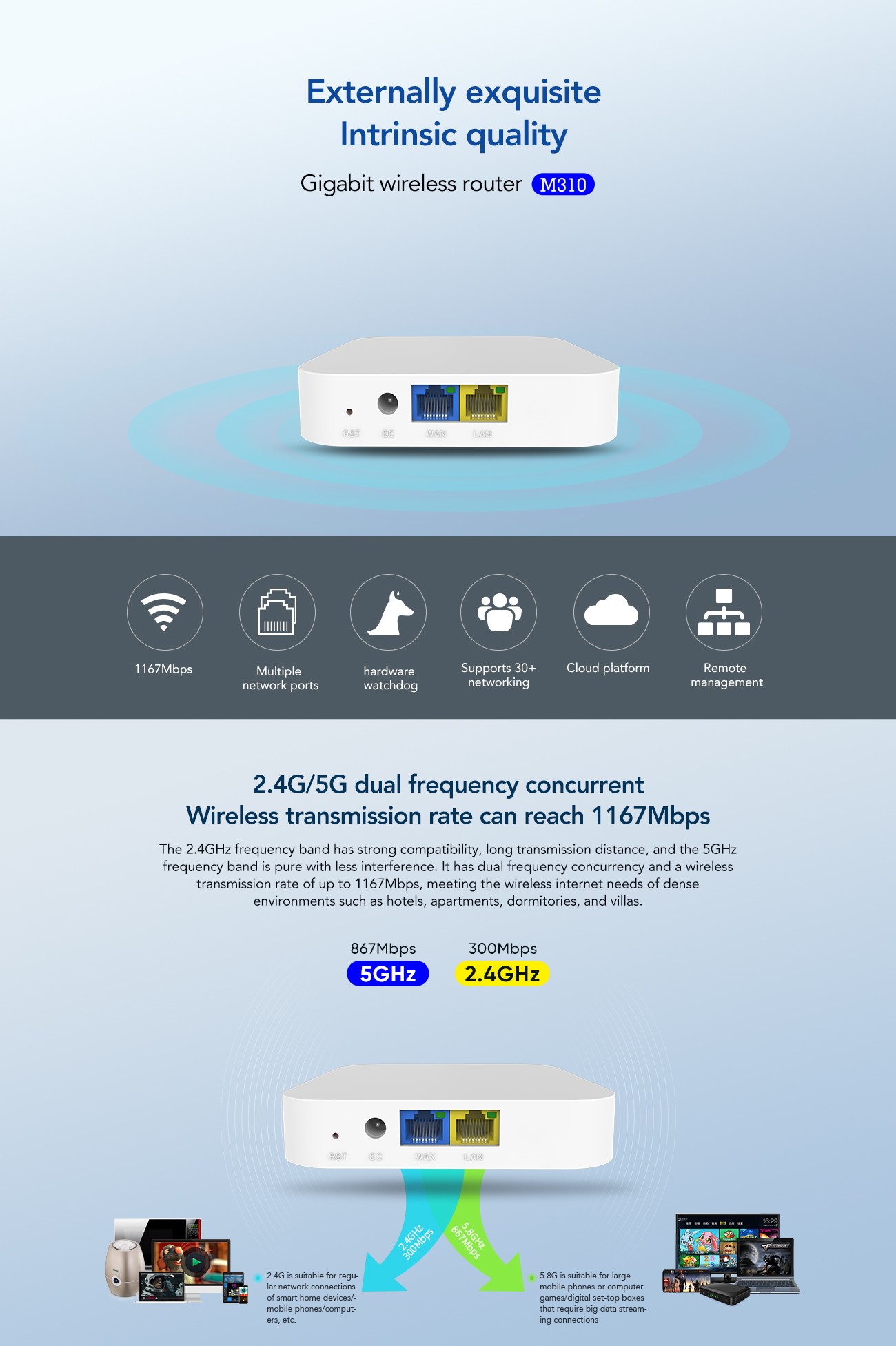

Max rate	2.4GHz: 300M; 5GHz: 866Mbps
2.4GHz TX Power	802.11b	11M	18±2dBm	1M	20±2dBm
	802.11g	54M	17±2dBm	6M	19±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n HT40	MCS7	16±2dBm	MCS0	18±2dBm
5GHz TX Power	802.11a	54M	17±2dBm	6M	19±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	17±2dBm
	802.11AC	MCS9	14±1dBm	MCS0	16±1dBm
2.4GHz Receiving Sensitivity	802.11b	11M	-84dBm	1M	-91dBm
	802.11g	54M	-70dBm	6M	-87dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-85dBm
5GHz Receiving Sensitivity	802.11a	54M	70dBm	6M	-86dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-83dBm
	802.11AC	MCS9	-56dBm	MCS0	-73dBm
2.4G EVM	802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28 dB
5G EVM	802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB
ppm	±20ppm

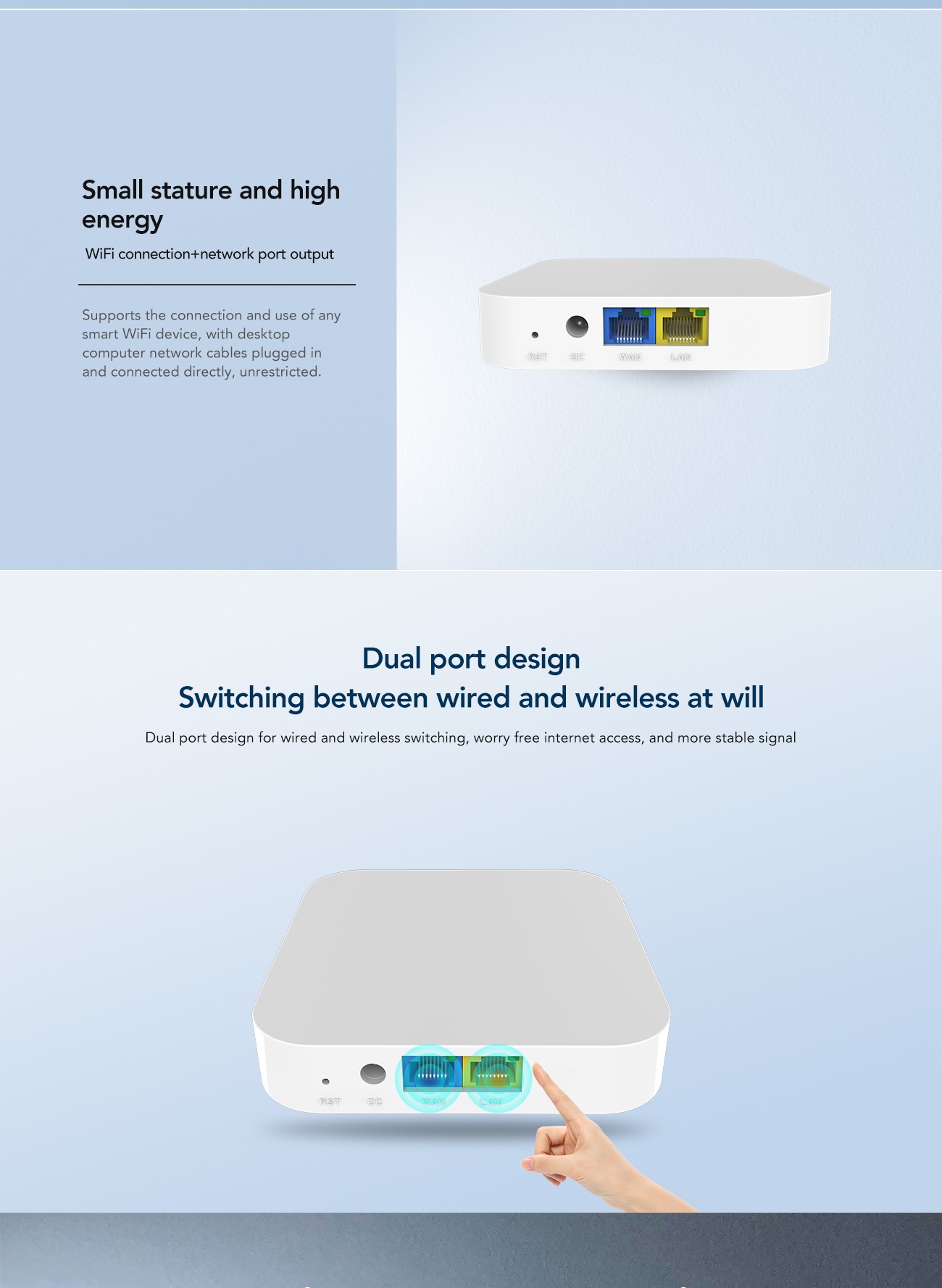

WAN	1*10/100M WAN
LAN	1*10/100M LAN
4G Module	Based on country/ region, please contact us to confirm.
Button	Reset to factory settings by pressing 6-10 seconds
LED indicator	SYS, WAN, LAN
Power Supply	DC 12V/1A
Max Power Consumption	< 8W
Size/ Weight	115mm×115mm×25mm，0.28kg
Working temperature	Working: -5°C to 45°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
ESD	Air:±8K, Touch:±4K
Electrical Surge	Common Mode: 2K, Differential Mode: 1K
