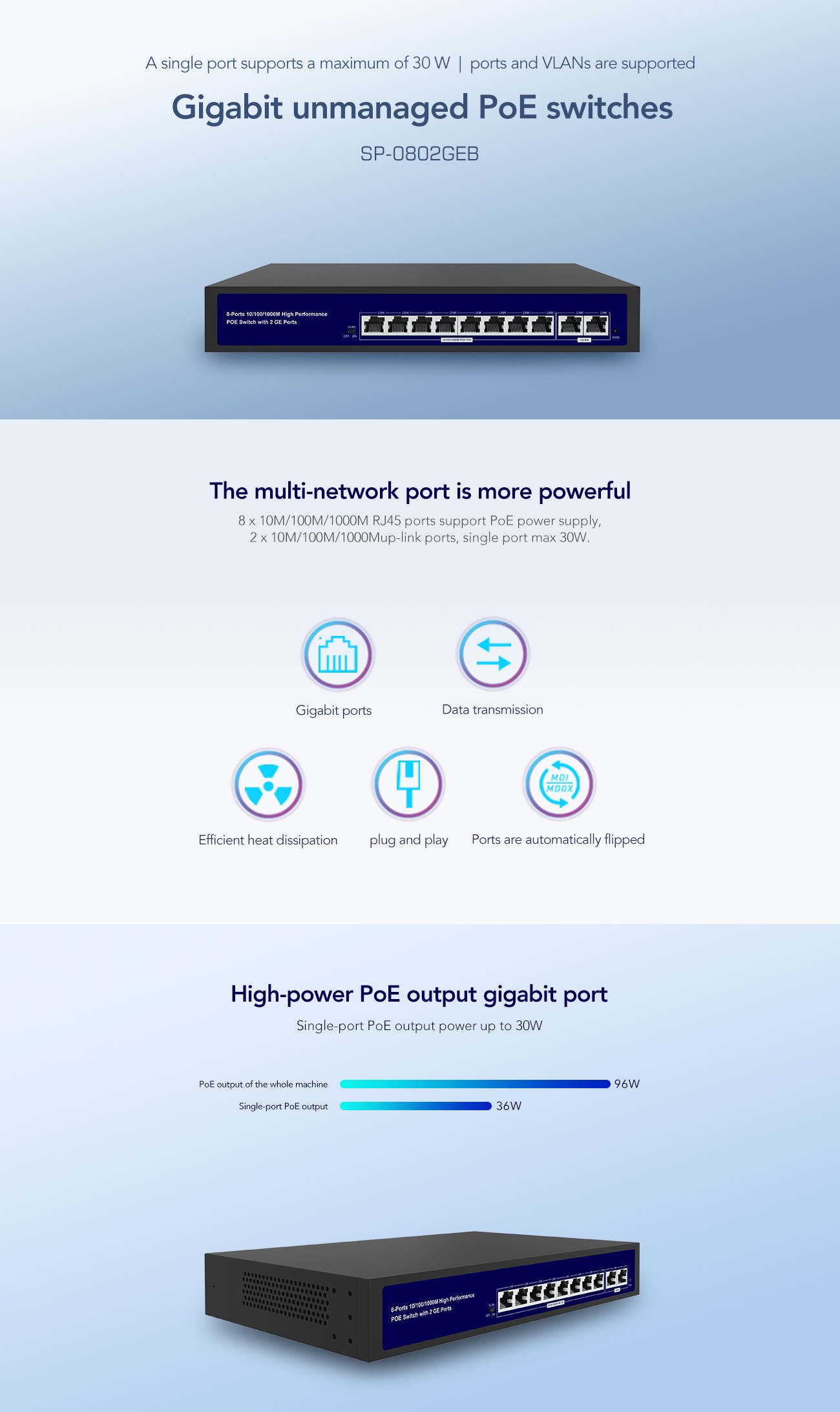

Model | SP-0802GEB |
Standard | IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX faster Ethernet IEEE802.3ab 1000BASE-T gigabit Ethernet ANSI/IEEE 802.3 NWay Auto-Negotiation |
Ports | 8 * 10/100/1000M auto Negotiation /auto MDI/MDIX Ethernet Ports |
2 * 10/100/1000M auto Negotiation /auto MDI/MDIX up-link Port |
Cable requirement | 10BASE-T: UTP 3, 4, 5 cable (≤100 meters) |
100BASE-TX: UTP 5 cable (≤100 meters) |
1000BASE-TX: UTP 5 cable (≤100 meters) |

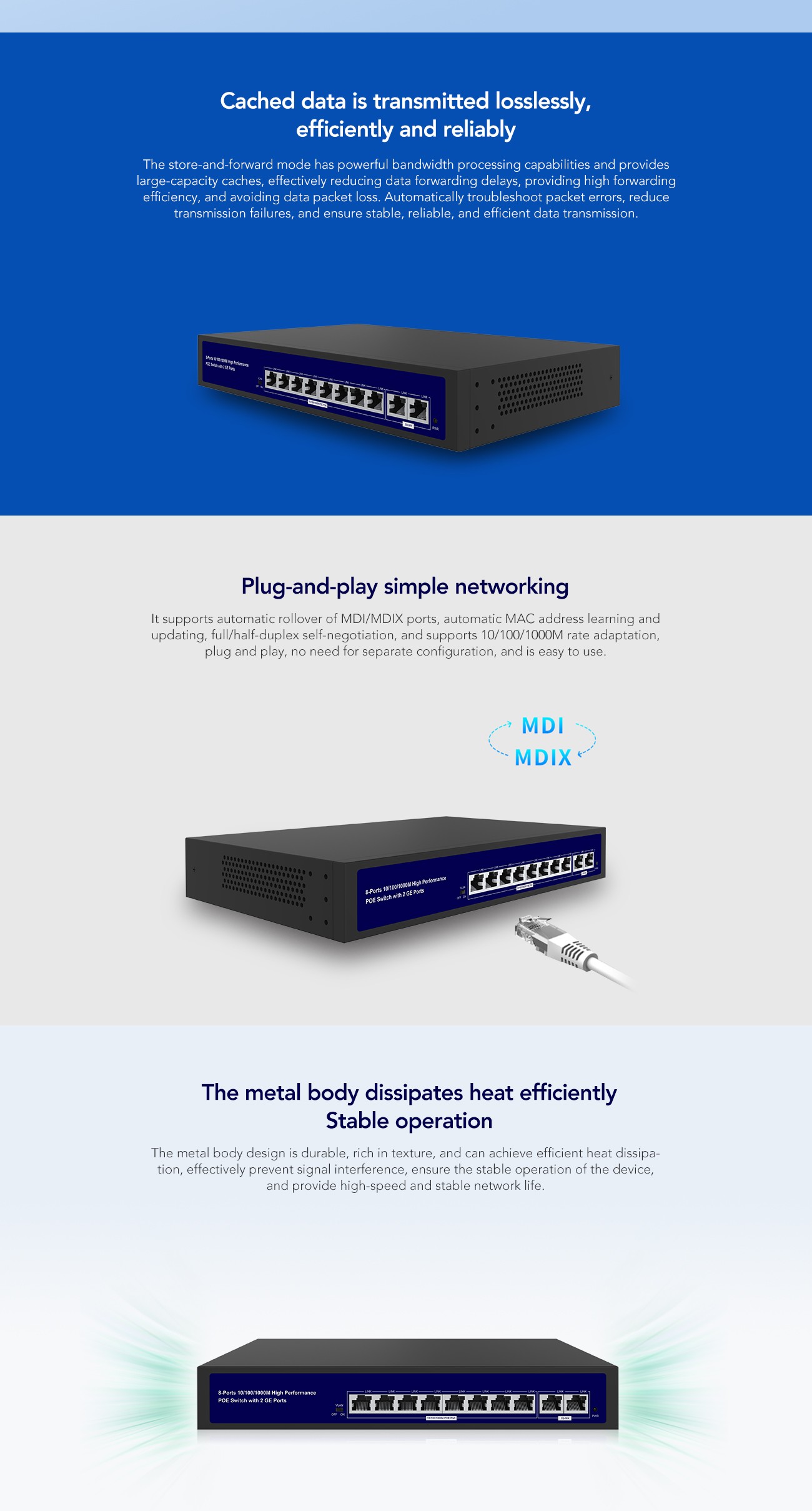

Advanced Functions | Support storage forwarding |
MAC Address Auto-Learning and Auto-Aging. |
IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Backplane Bandwidth | 16Gbps |
MAC Address Table | 2K |
Forwarding Rate | 10BASE-T:14800pps/port |
100BASE-TX:148000pps/port |
1000BASE-TX:1480000pps/port |
LED Indicator | PWR LINK for each port |
Size(L*W*H) | 290mm*180mm*44.5mm |
Working Environment | Working Temperature: 0℃~40℃ |
Storage Temperature: -40℃~70℃ |
Working Humidity: 10%~90% No Condensation |
Storage Humidity: 5%~90% No Condensation |
