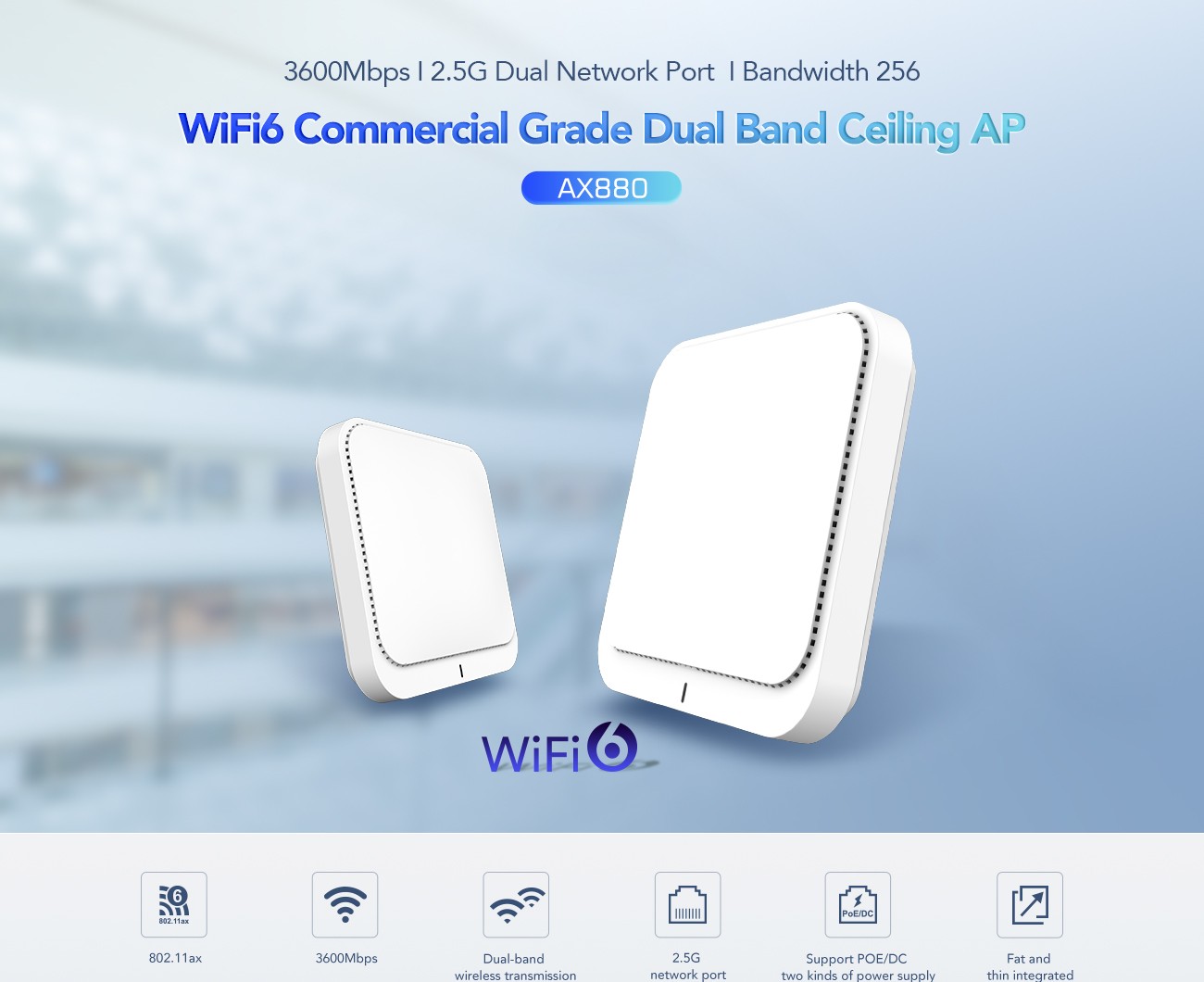

WiFi 6 Dual Band 4*4 Ceiling AP-Products-Shenzhen Yunlink Technology Co., Ltd.©2023








Model	AX880
CPU	IPQ8072+QCN5024+QCN5054+PMP8074+QCA8081*2(2.5G)
Flash	SPI NOR 8MB
DDR3	512MB*2
Nand Flash	128MB
2.4G RF	QCN5024-2.4G external FEM: SKY85334-11
5.8G RF	QCN5054-5.8G external FEM: SKY85750-11
2.4G Frequency	2.4GHz – 2.484GHz
2.4G Protocol	802.11 b / g / n /ac /ax
5G Frequency	5.150GHz～5.850GHz
5G Protocol	802.11 a / n / ac /ax
Antenna	4*2.4G/5.8G dual band omin antennas: 3 dBi+
Data Rate	2.4G 1148 Mbps MIMO 44, 5G 2402Mbps MIMO 44
2.4G TX Power	802.11b	11M	17±2dBm	1M	18±2dBm
	802.11g	54M	16±2dBm	6M	17±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	17±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ax HE20	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HE40	MCS11	15±2dBm	MCS0	16±2dBm
5G TX Power	802.11a	54M	16±2dBm	6M	17±2dBm
	802.11n HT20	MCS7	15±2dBm	MCS0	16±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac VHT20	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac VHT40	MCS7	15±2dBm	MCS0	16±2dBm
	802.11ac VHT80	MCS9	14±2dBm	MCS0	15±2dBm
	802.11ax HE20	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HE40	MCS11	15±2dBm	MCS0	16±2dBm
	802.11ax HE80	MCS11	14±2dBm	MCS0	15±2dBm
2.4G Receiving Sensitivity	802.11b	11M	-85dBm	1M	-92dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
	802.11ax HE20	MCS11	-60dBm	MCS0	-85dBm
	802.11ax HE40	MCS11	-56dBm	MCS0	-85dBm
5G Receiving Sensitivity	802.11a	54M	-72dBm	6M	-92dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-90dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ac VHT20	MCS7	-70dBm	MCS0	-90dBm
	802.11ac VHT40	MCS7	-68dBm	MCS0	-88dBm
	802.11ac VHT80	MCS9	-58dBm	MCS0	-85dBm
	802.11ax HE20	MCS11	-62dBm	MCS0	-88dBm
	802.11ax HE40	MCS11	-58dBm	MCS0	-86dBm
	802.11ax HE80	MCS11	-55dBm	MCS0	-84dBm
2.4G EVM	802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ; 802.11ax: ≤-35 dB
5G EVM	802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB
ppm	±20ppm
WAN	1*10/100/1000/2500M RJ45, support 48V PoE
LAN	1*10/100/1000/2500M RJ45
Reset	Reset to factory settings by pressing 6-10 seconds
Indicators	WAN, LAN, tricolor LED(sys-red, 2.4G-green, 5.8G-blue)
Power	DC2.0 12V 2A, PoE 802.3at
Max Power Consumption	< 22W
Dimension	198mm×198mm×41mm
Weight	0.9kg
Temperature	Working: -20°C to 45°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
ESD	Air:±8K, Touch:±4K
Electrical Surge	Common Mode: 2K, Differential Mode: 1K
