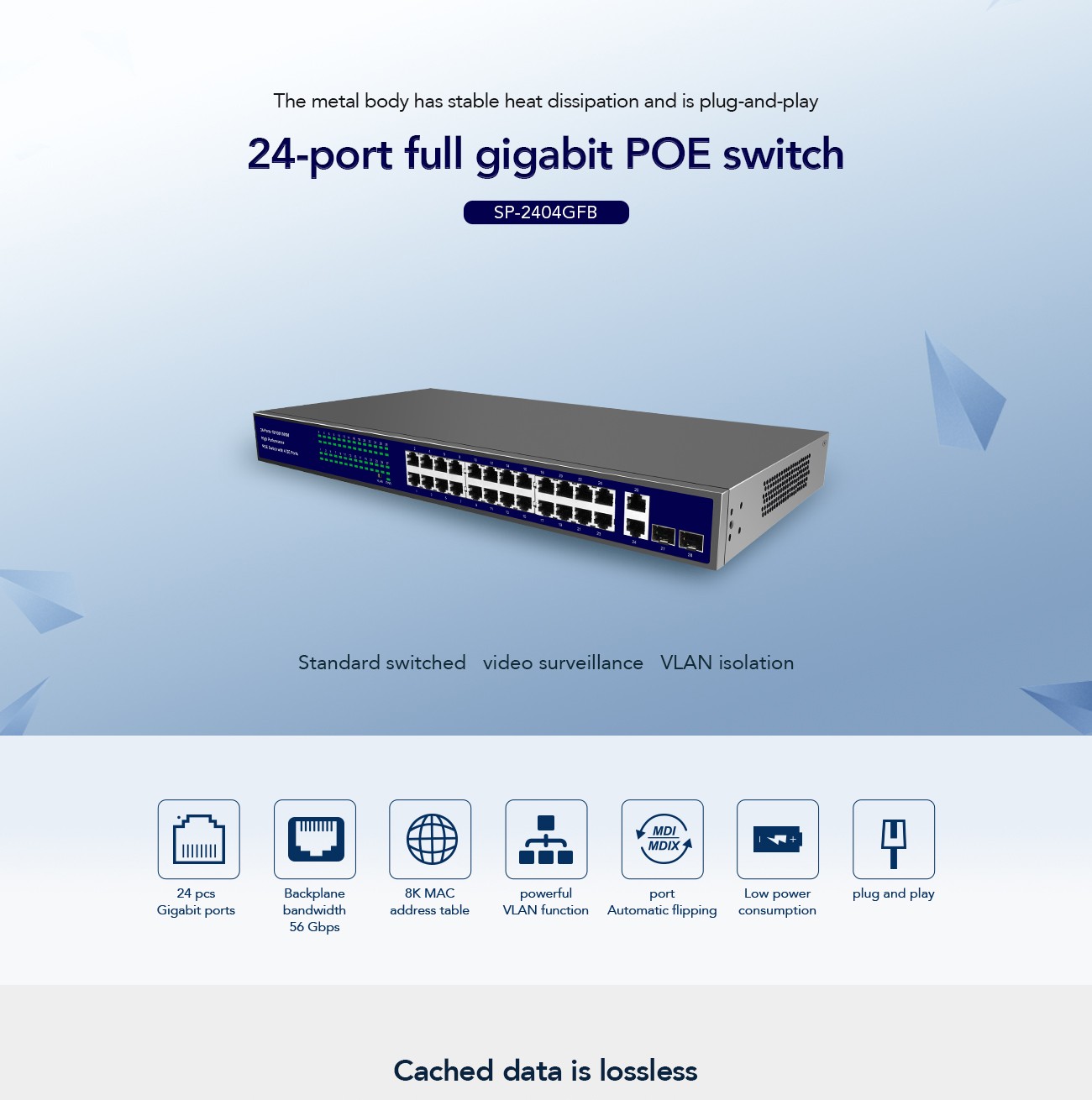

24 Ports Gigabit Unmanaged POE Switch-Products-Shenzhen Yunlink Technology Co., Ltd.©2023





Model	SP-2404GFB
CPU	RTL8382L+2*RTL8218B+RTL8214FC
Standard	1、IEEE802.3 10BASE-T Ethernet 2、IEEE802.3u 100BASE-TX Fast Ethernet 3、IEEE802.3ab 1000BASE-T Gigabit Ethernet 4、ANSI/IEEE 802.3 NWay Automatic negotiation 5、IEEE802.3af 6、IEEE802.3at
Ports	24* 10/100/1000M RJ45 PoE Ports 2 * 10/100/1000M RJ45 Up-Link Ports 2 * 1000Base-X SFP Fiber Ports

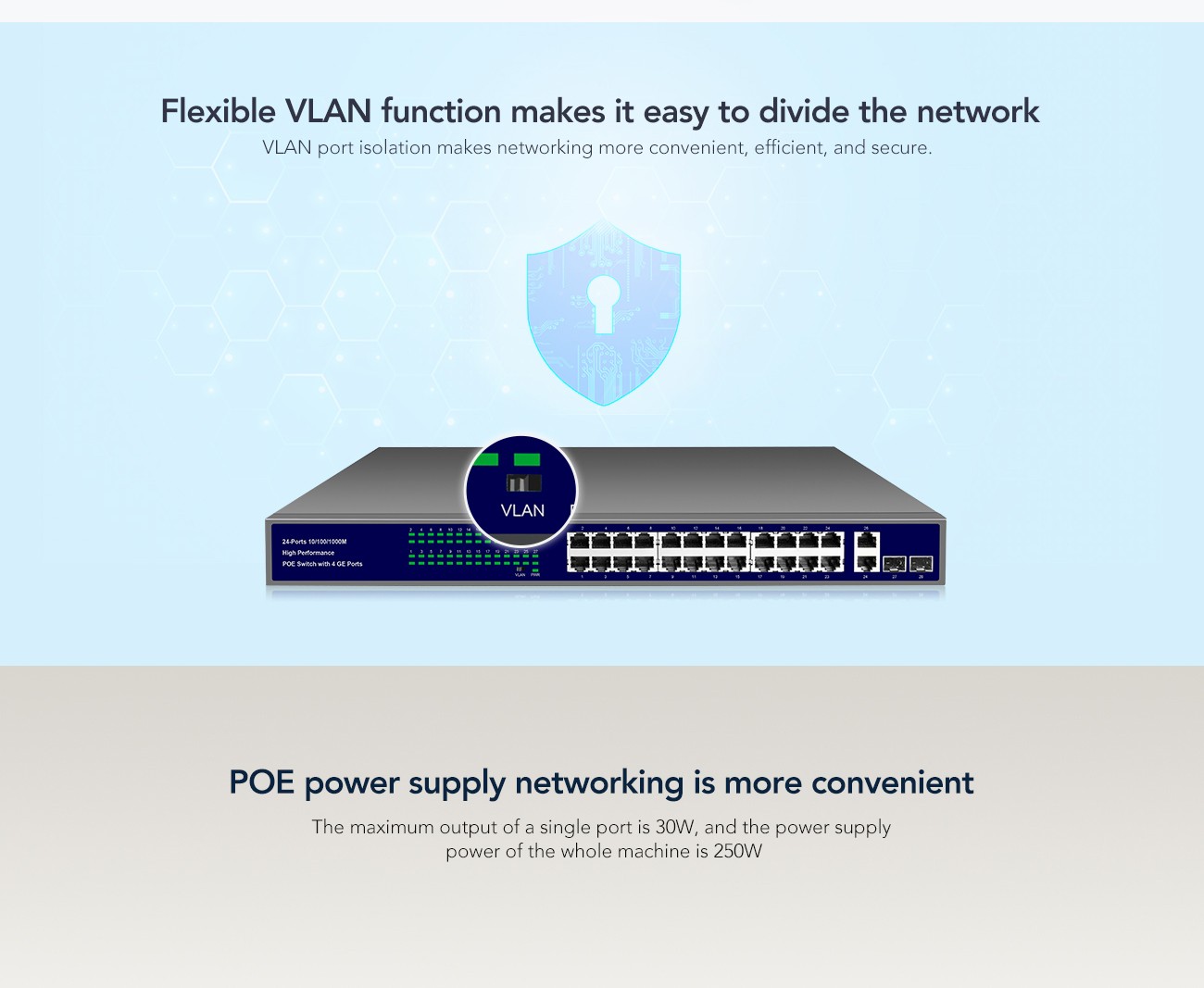

Property	1、Connector: RJ-45,SFP. 2、Support 10M/100M/1000 Mbit/s data rate 3、Support half duplex, full duplex, self negotiation mode 4、Support MDI/MDI-X adaptive 5、Support VLAN port isolation
LAN Cable	1、10/100/1000 BASE-TX: 2、3/4/5 twisted pair, max 100 meters transmit range

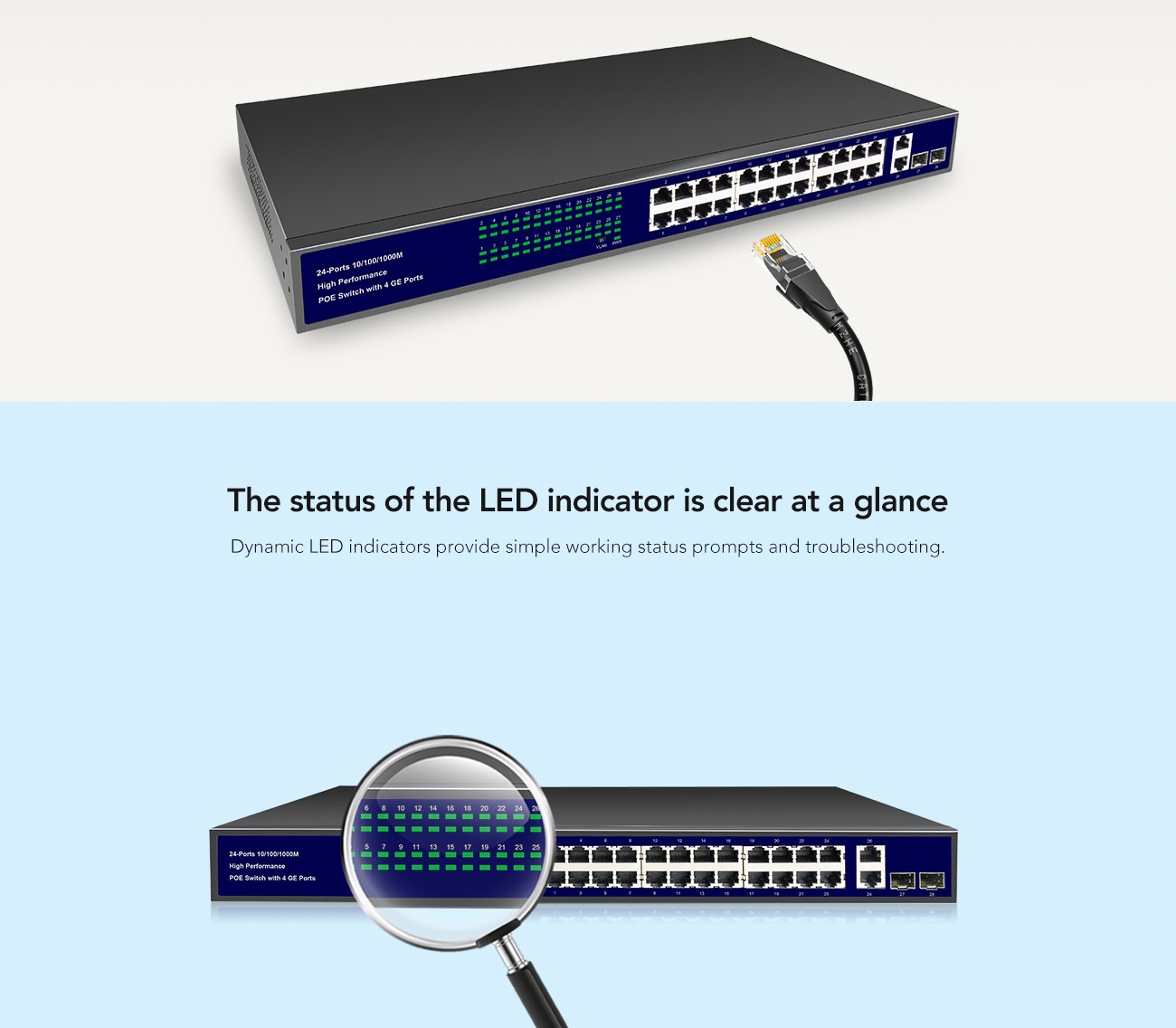

LINK LED	1、Per Port:1000LINK/Act；10/100M Link/Act 2、Per Device: POWER
Back bandwidth	56Gbps
Packet Forwarding Rate	10 Mpbs：14800pps 100 Mpbs：148000pps 1000 Mpbs：1480000pps

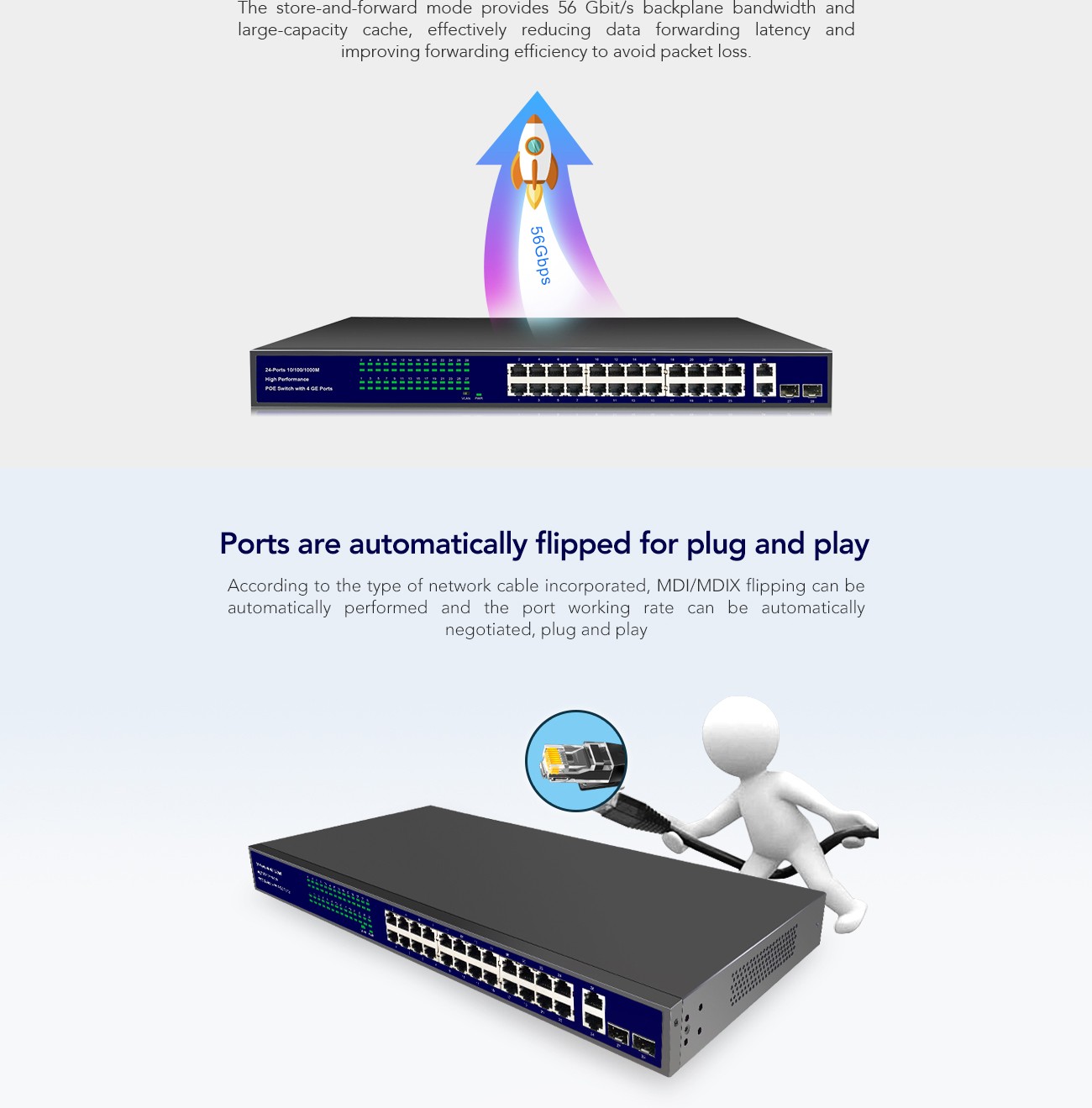

Switching Mode	Storage and forwarding
MAC Address	Support MAC address automatic learning, automatic aging MAC Address Table: 8K
PoE Starndard	IEEE802.3af、IEEE802.3at
Max Port PoE power	30W
ESD	±6KV
Max Power	250W / 400W
DC Input	100－240V～ 50/60Hz
Working Temperature	0ºC ~ 40ºC
Storage Temperature	-40ºC ~ 70ºC
Working Humidity	10% ~ 90% RH
Storage Humidity	5% ~ 90% RH
Heat dissipation	Fan
Size （L×W×H）	L440W221.545H
Weight	4 kg
