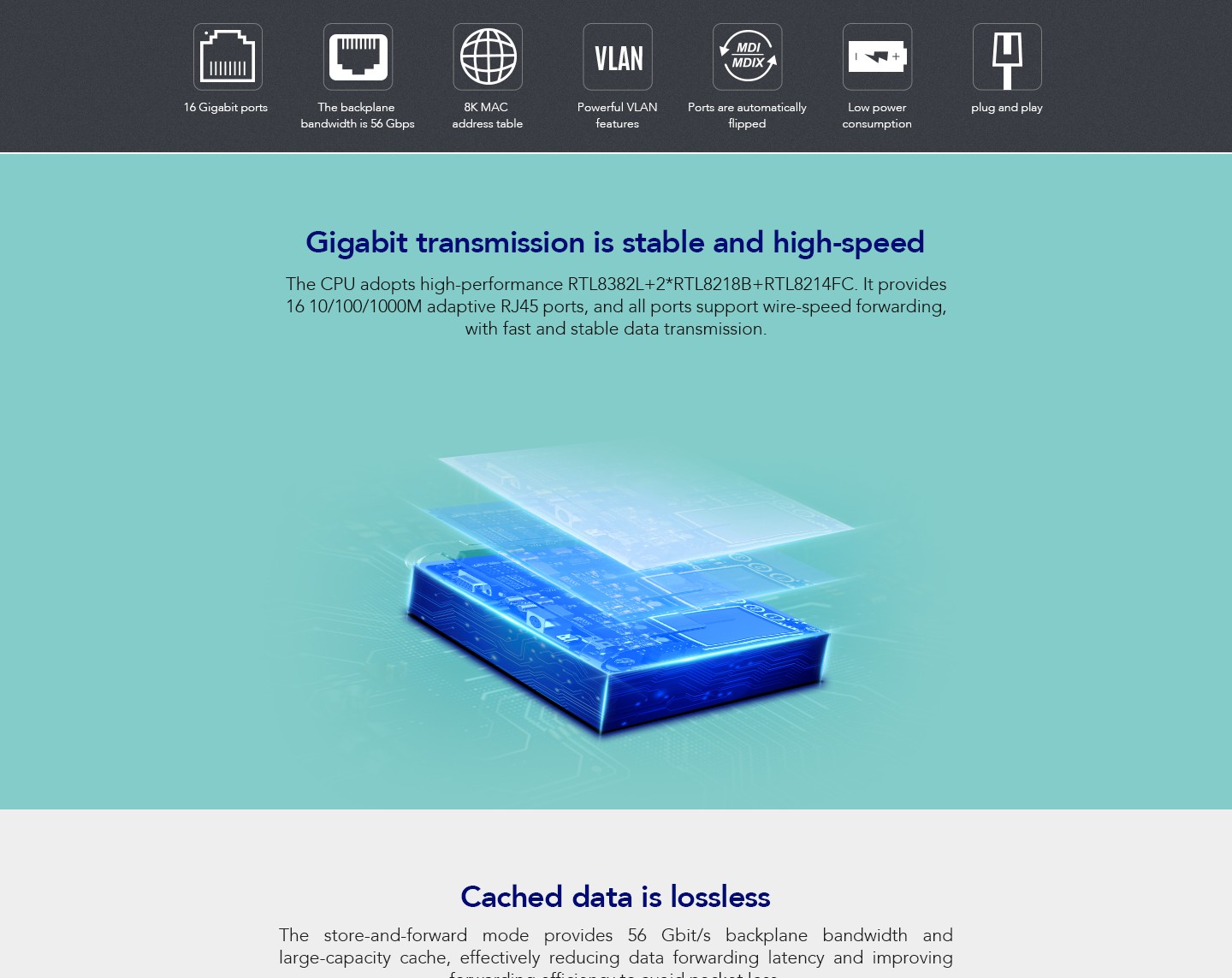

CPU

RTL8382L+2*RTL8218B+RTL8214FC

Standard

1、IEEE802.3 10BASE-T Ethernet

2、IEEE802.3u 100BASE-TX Fast Ethernet

3、IEEE802.3ab 1000BASE-T Gigabit Ethernet

4、ANSI/IEEE 802.3 NWay Automatic negotiation

5、IEEE802.3af

6、IEEE802.3at

Ports

16* 10/100/1000M RJ45 PoE Ports

2 * 10/100/1000M RJ45 Up-Link Ports

2 * 1000Base-X SFP Fiber Ports

Property

1、Connector: RJ-45,SFP.

2、Support 10M/100M/1000 Mbit/s data rate

3、Support half duplex, full duplex, self negotiation mode

4、Support MDI/MDI-X adaptive

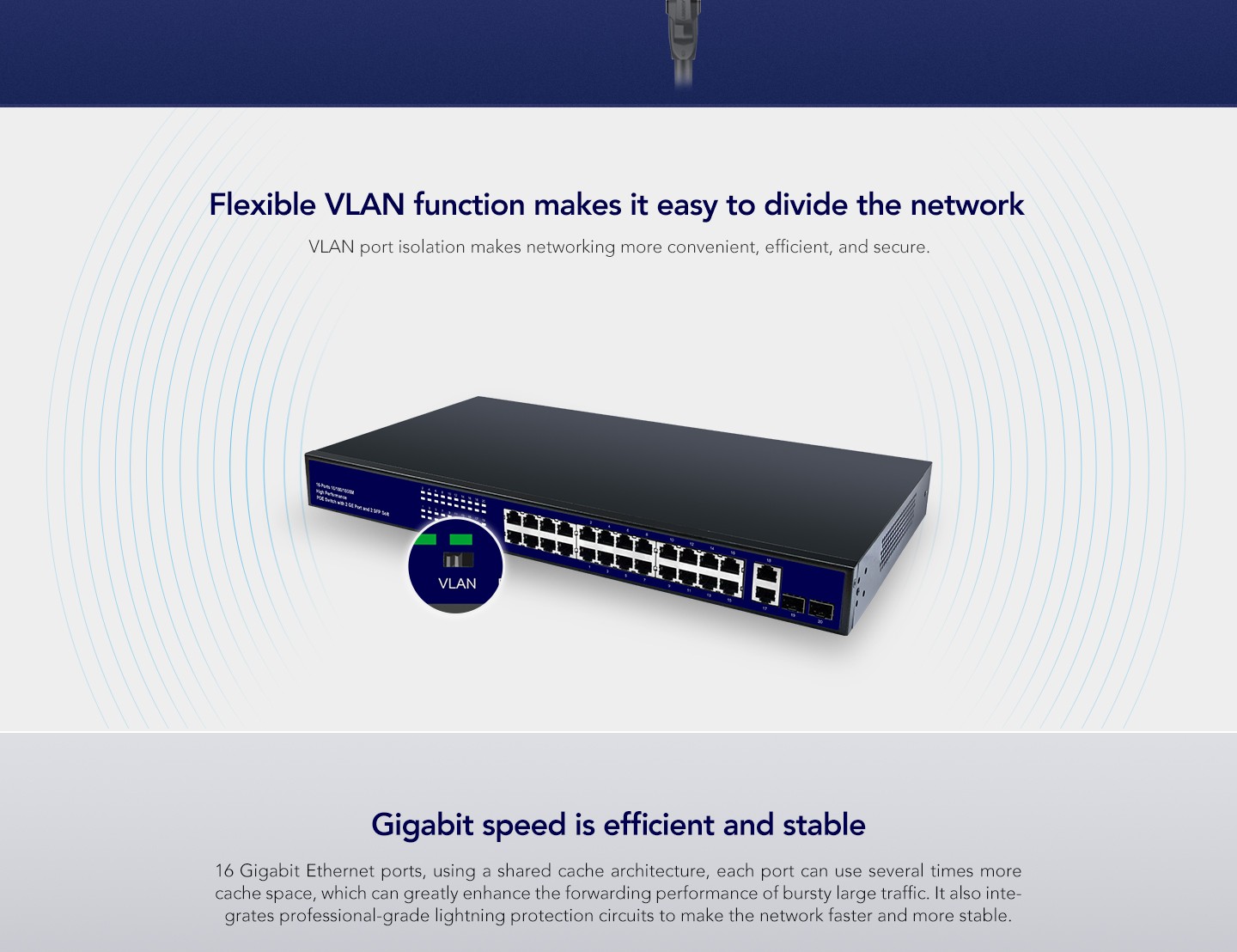

5、Support VLAN port isolation

LAN Cable

1、10/100/1000 BASE-TX:

2、3/4/5 twisted pair, max 100 meters transmit range

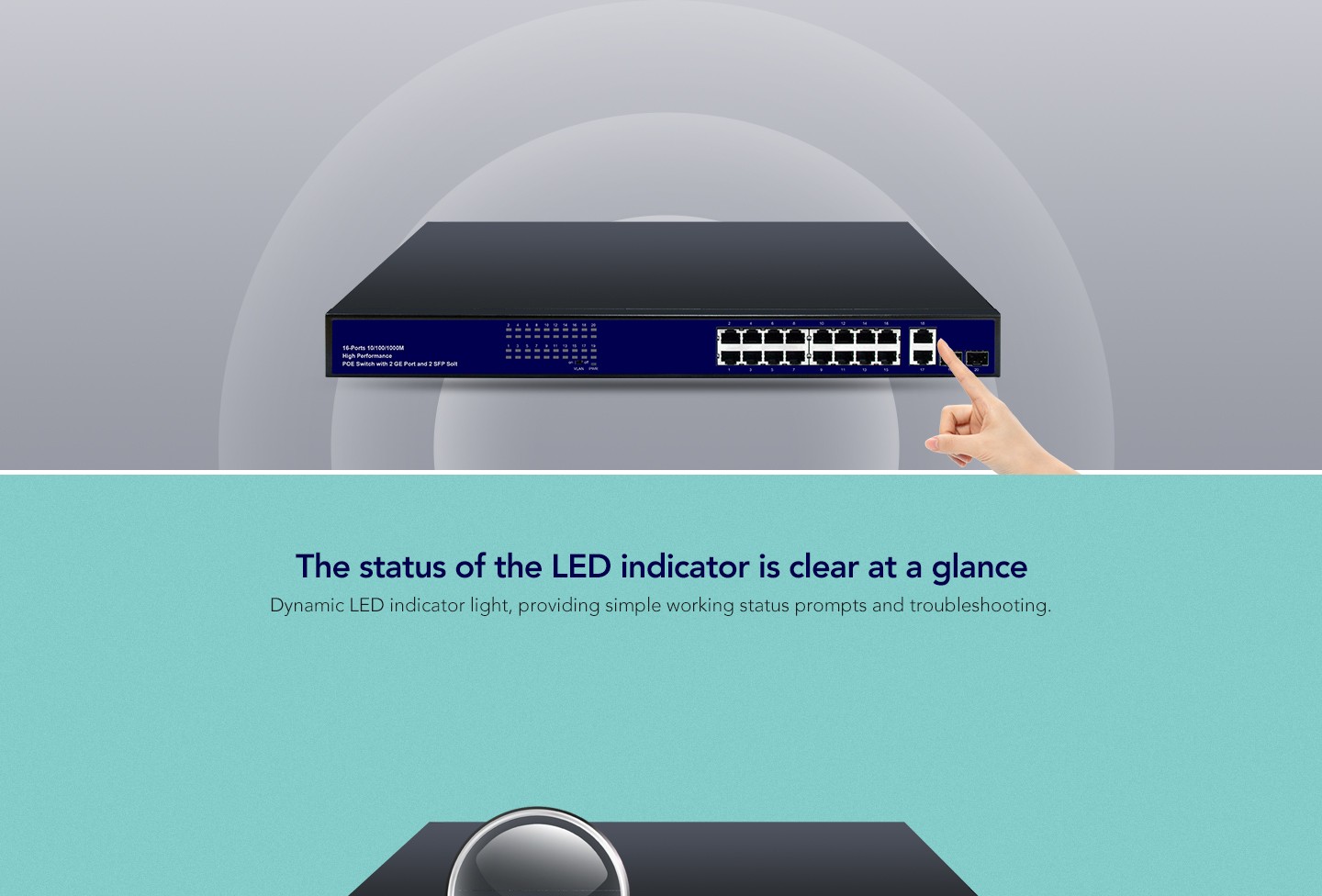

LINK LED

1、Per Port:1000LINK/Act；10/100M Link/Act

2、Per Device: POWER

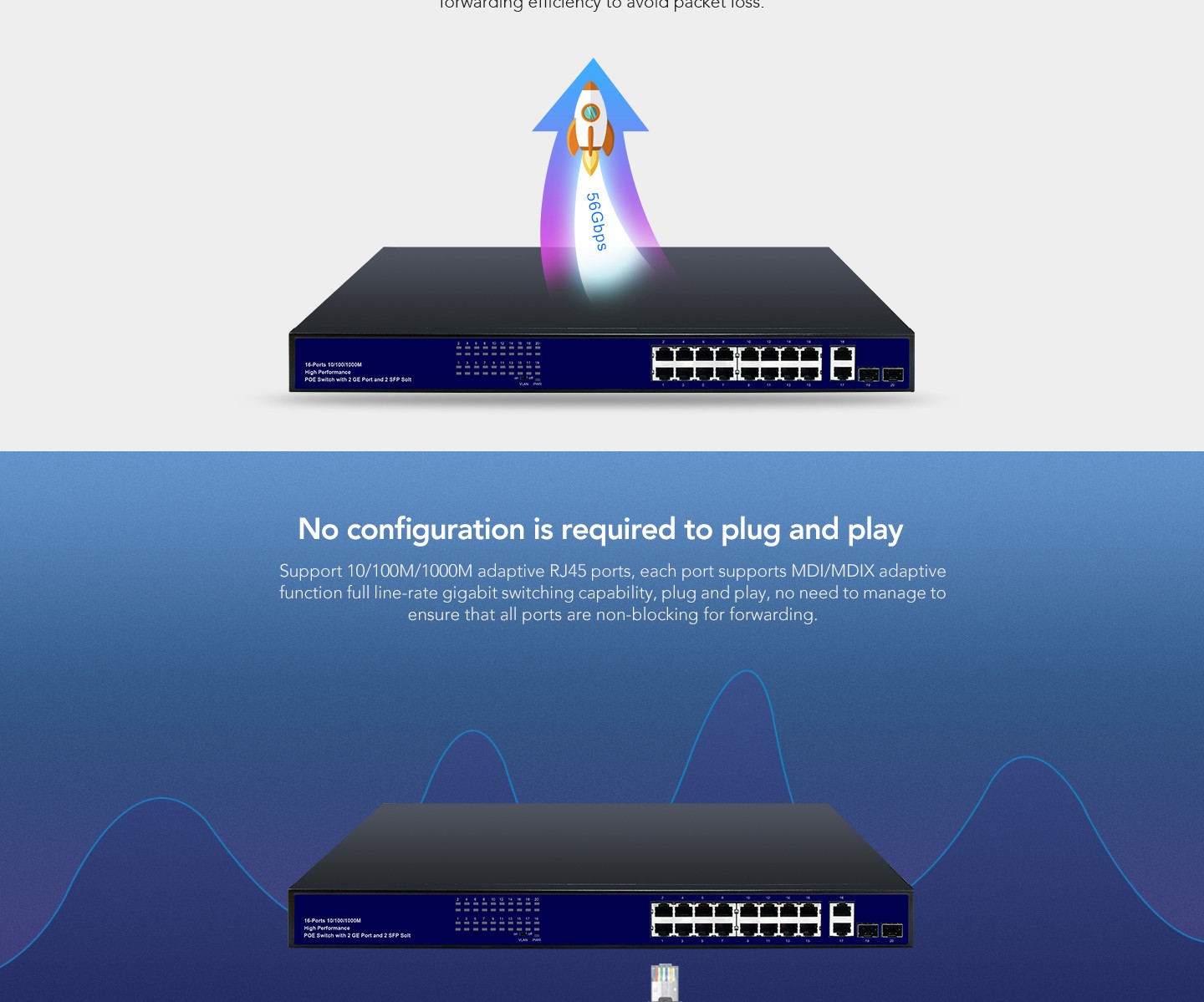

Back bandwidth

56Gbps

Packet Forwarding Rate

10 Mpbs：14800pps

100 Mpbs：148000pps

1000 Mpbs：1480000pps

Switching Mode

Storage and forwarding

MAC Address

Support MAC address automatic learning, automatic aging

MAC Address Table: 8K

PoE Starndard

IEEE802.3af、IEEE802.3at

Max Port PoE power

30W

ESD

±6KV

Max Power

250W /

DC Input

100－240V～ 50/60Hz

Working Temperature

0ºC ~ 40ºC

Storage Temperature

-40ºC ~ 70ºC

Working Humidity

10% ~ 90% RH

Storage Humidity

5% ~ 90% RH

Heat dissipation

Fan

Size （L×W×H）

L440*W221.5*45H

Weight

 4 kg
