Specification parameters

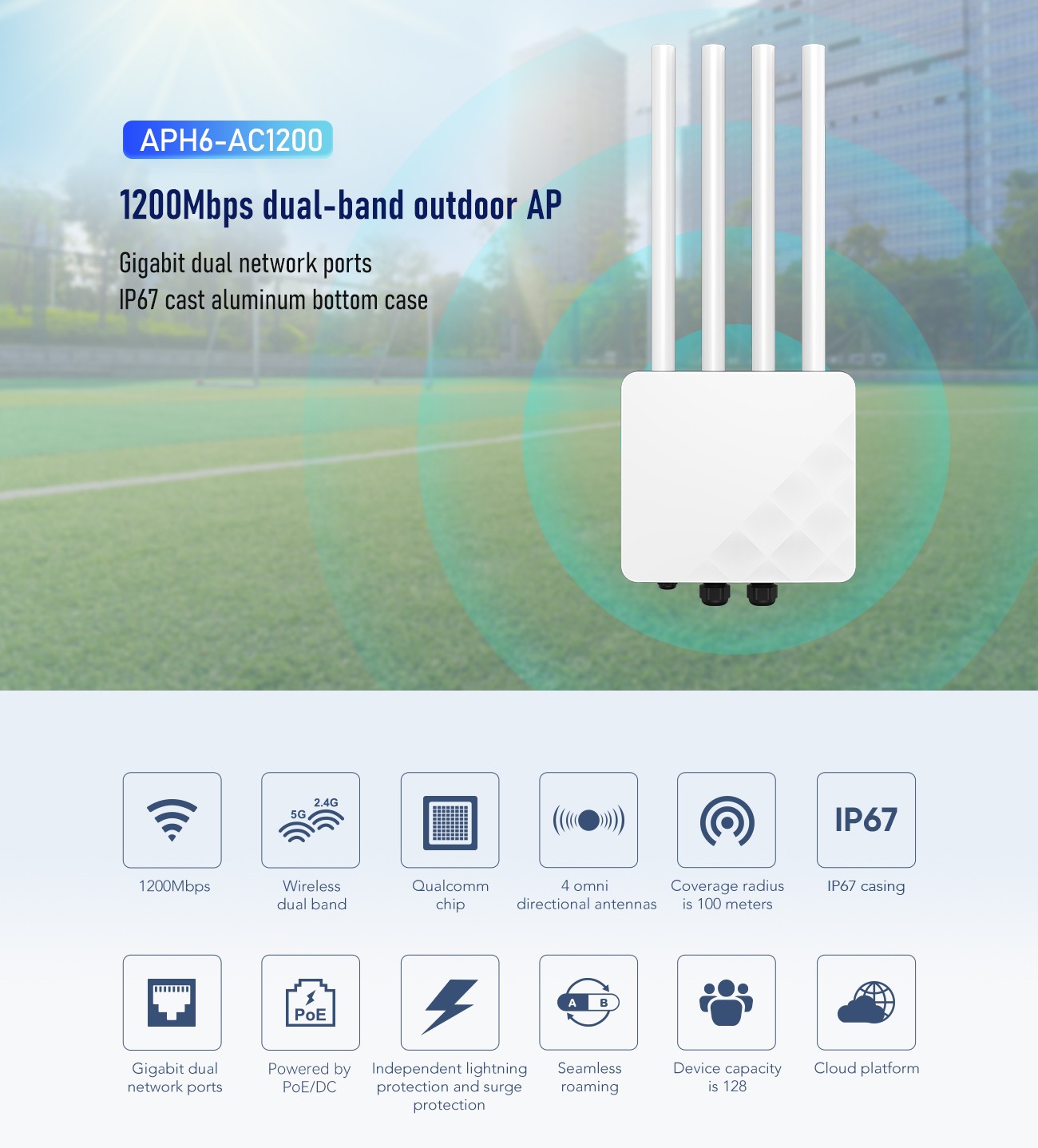

Product model	APH6-AC1200
CPU	QCA9563+ QCA9886+ QCA8337
Flash	16MB
DDR2	128MB
2.4G working frequency band	2.4GHz – 2.484GHz
2.4G WIFI transmission protocol	802.11 b / g / n
5G working frequency band	5.150GHz～5.850GHz
5G WIFI transmission protocol	802.11 a / n / ac

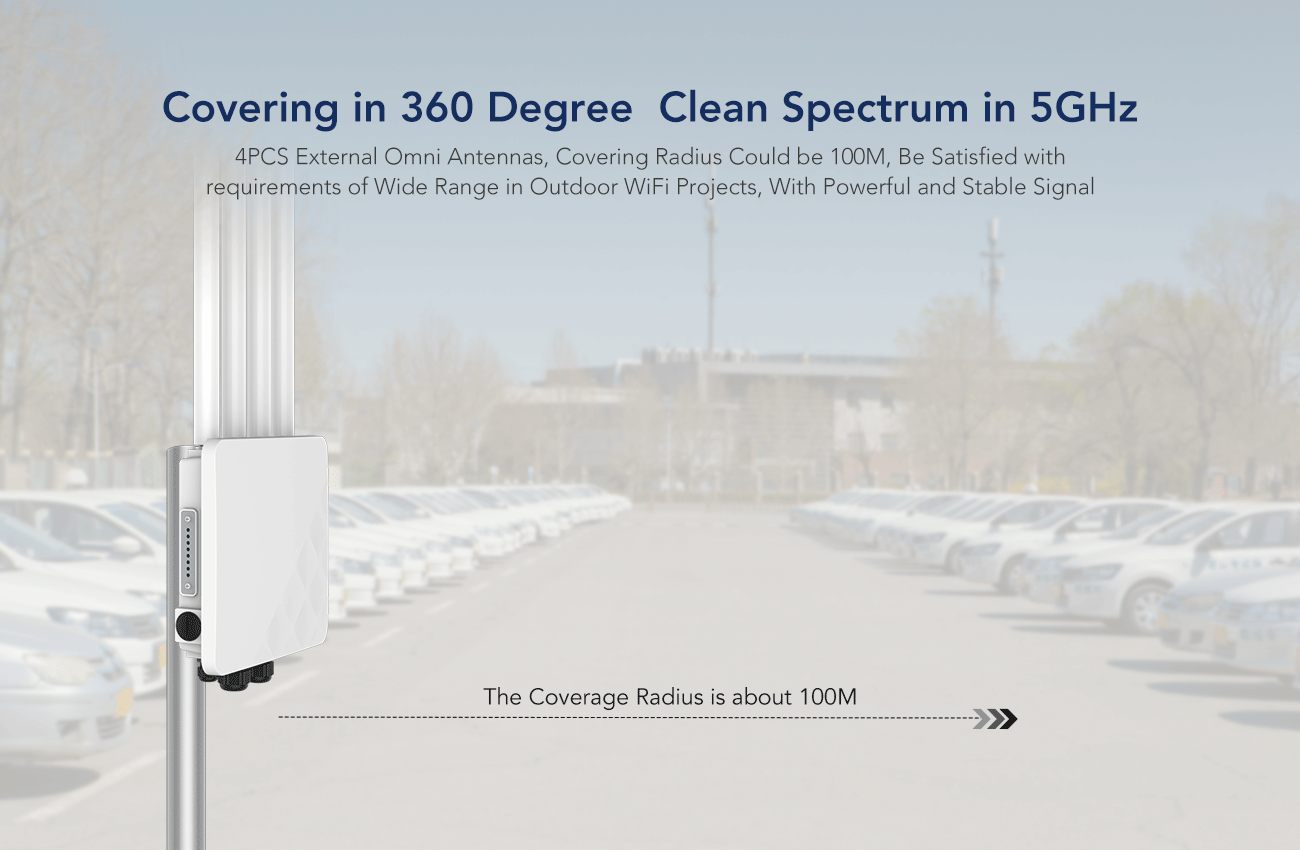

Antenna: 2.4G	22.4G omni-directional antennas, with each gain: 6 dBi
Antenna 5G	25G antennas, each gain: 6 dBi

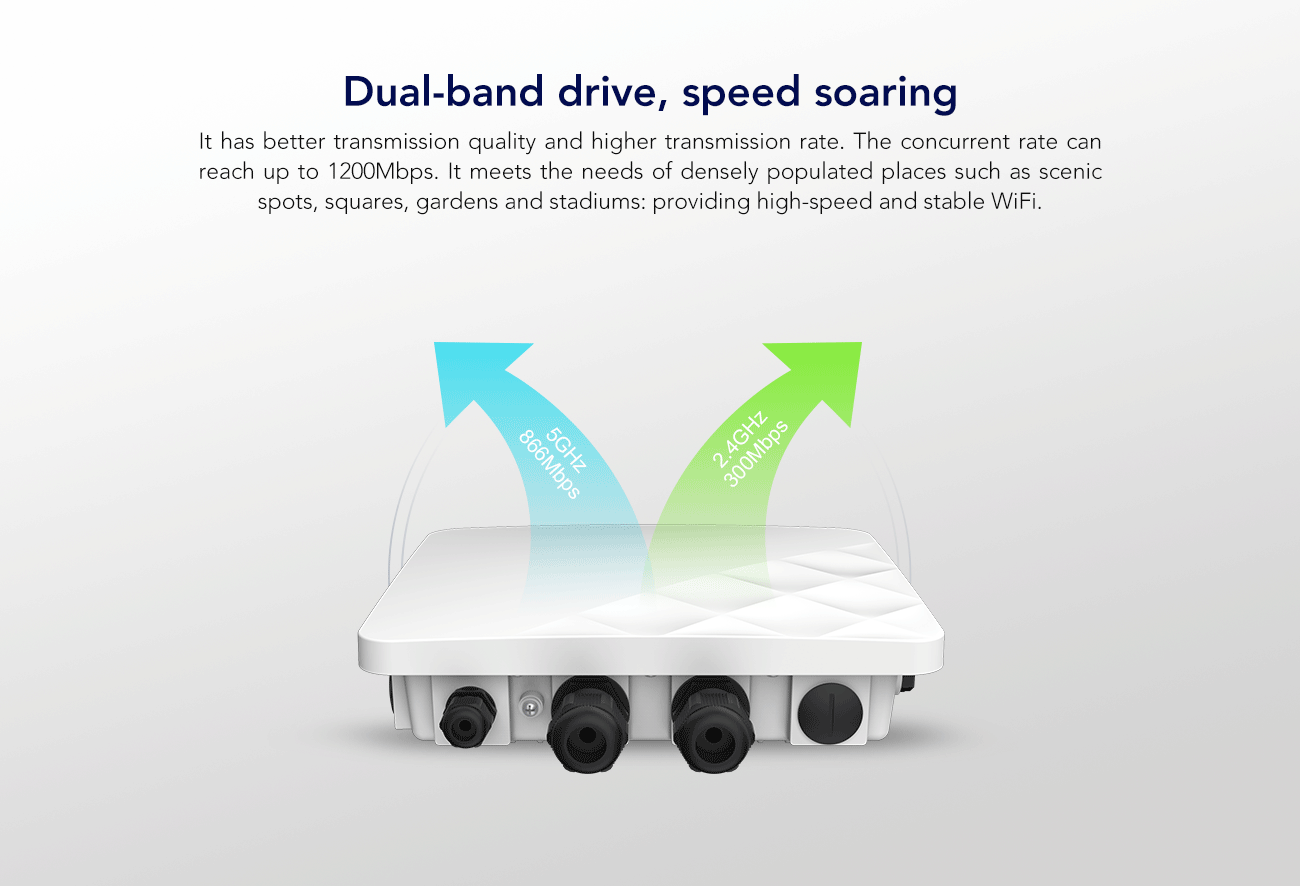

top speed	2.4G provides a maximum access rate of 300Mbps, and 5G up to 866Mbps
Maximum wireless access support	128
And 2.4G wireless power	802.11b	11M	21±2dBm	1M	23±2dBm
	802.11g	54M	20±2dBm	6M	22±2dBm
	802.11n HT20	MCS7	19±2dBm	MCS0	21±2dBm
	802.11n HT40	MCS7	18±2dBm	MCS0	20±2dBm
5G wireless power	802.11a	54M	19±2dBm	6M	21±2dBm
	802.11n HT20	MCS7	18±2dBm	MCS0	20±2dBm
	802.11n HT40	MCS7	17±2dBm	MCS0	19±2dBm
	802.11ac VHT80	MCS9	16±2dBm	MCS0	18±2dBm
2.4G reception sensitivity	802.11b	11M	-85dBm	1M	-94dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
The 5G reception sensitivity	802.11a	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
	802.11ac VHT80	MCS9	-58dBm	MCS0	-80dBm
2.4G EVM	802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ;
5G EVM	802.11a:≤-25 dB； 802.11n:≤-28 dB；802.11ac:≤-32 dB ;
frequency deviation (ppm)	±20ppm

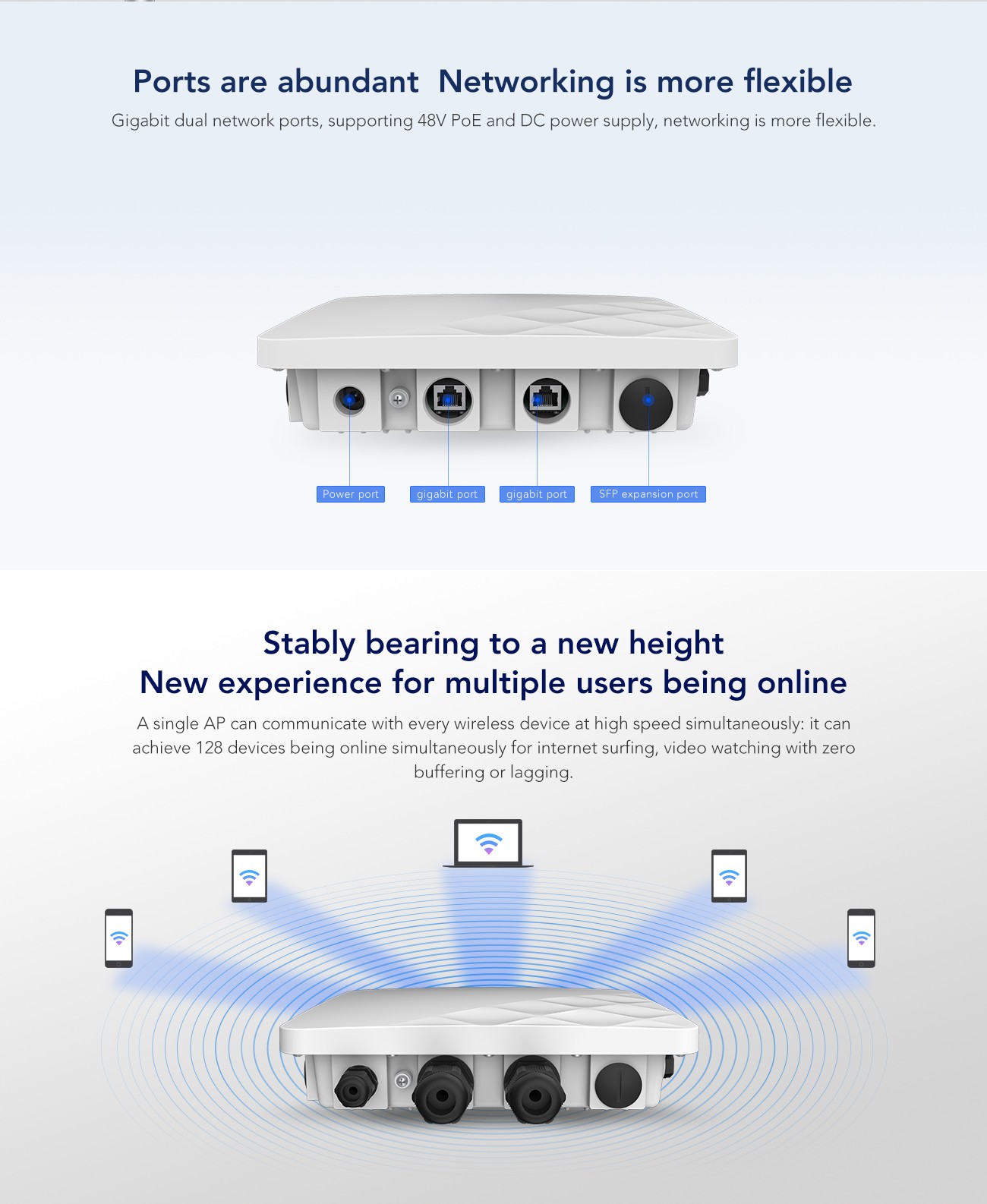

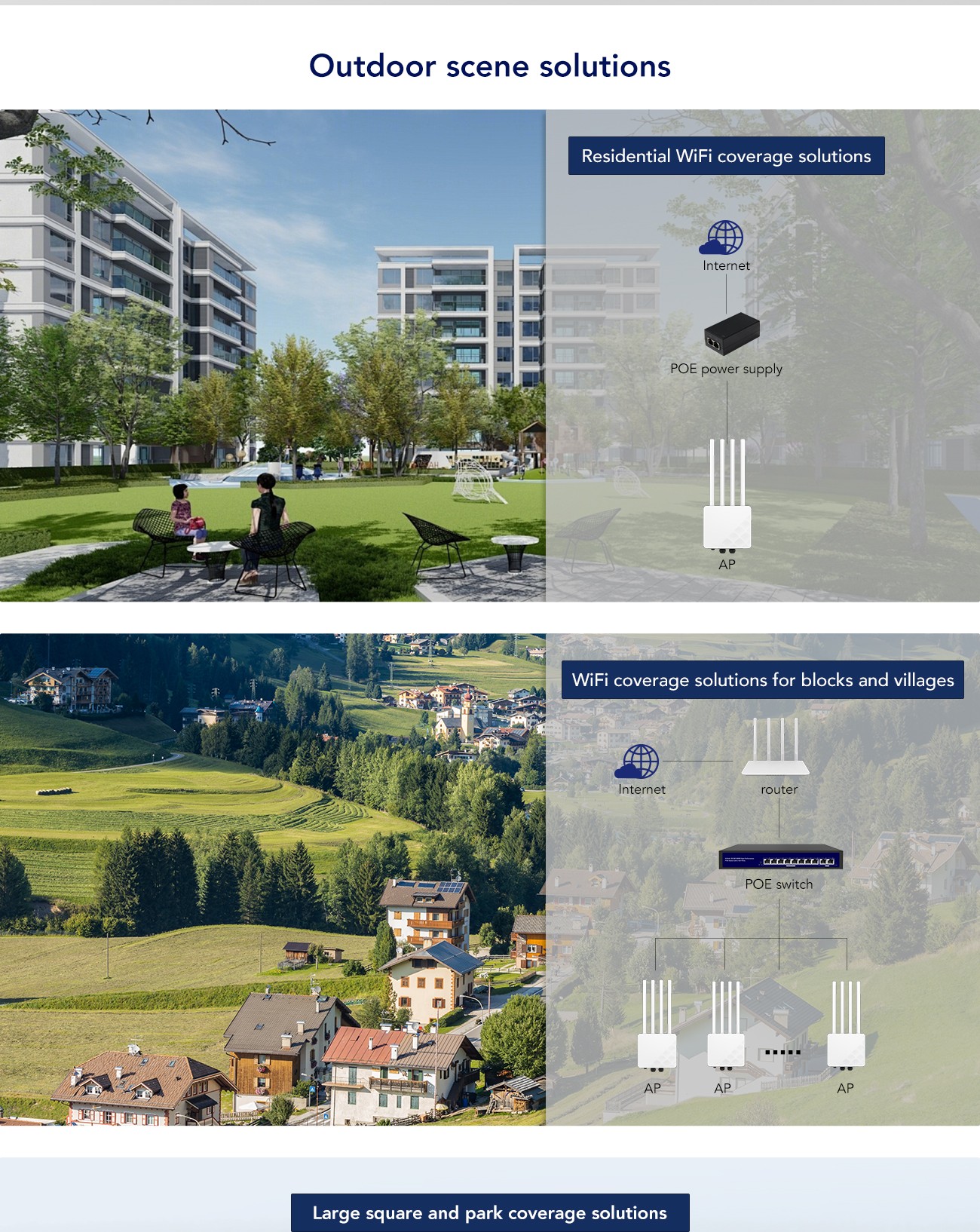

joggle (WAN)	110 / 100 / 1000Mbps adaptive WAN port, supporting PoE 48V input;
joggle (LAN)	110 / 100 / 1000Mbps adaptive LAN port
External buttons	Set key (press 6-10 seconds to restore factory default configuration)
Status indicator light	5G Hz WiFi lamp: screen printing 5G, green single lamp: 5GHz open often on, off off, flashing when there is data sending and receiving; 2.4G WiFi Light: screen printing 2.4G, green single light: 2.4GHz open often on, off off, flashing when there is data sending and receiving; WAN port lamp: screen printing ETH 2, green single light: UP always on, Down off, there is data shining; LAN port lamp: screen printing ETH 1, green single light: UP always on, Down off, there is data shining; System state light: screen printing SYS, green single light: system state start, always on; abnormal, off; Power lamp: screen printing PWR, green single light: immediately after power on, green light is always on;
supply electricity	PoE802.3 at，DC2.0 12V/2 A
maximum power dissipation	< 18 W
product size	243.2 mm × 218.3 mm × 64.1 mm
weight	TBD
work environment	Normal operating temperature: -20°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation)

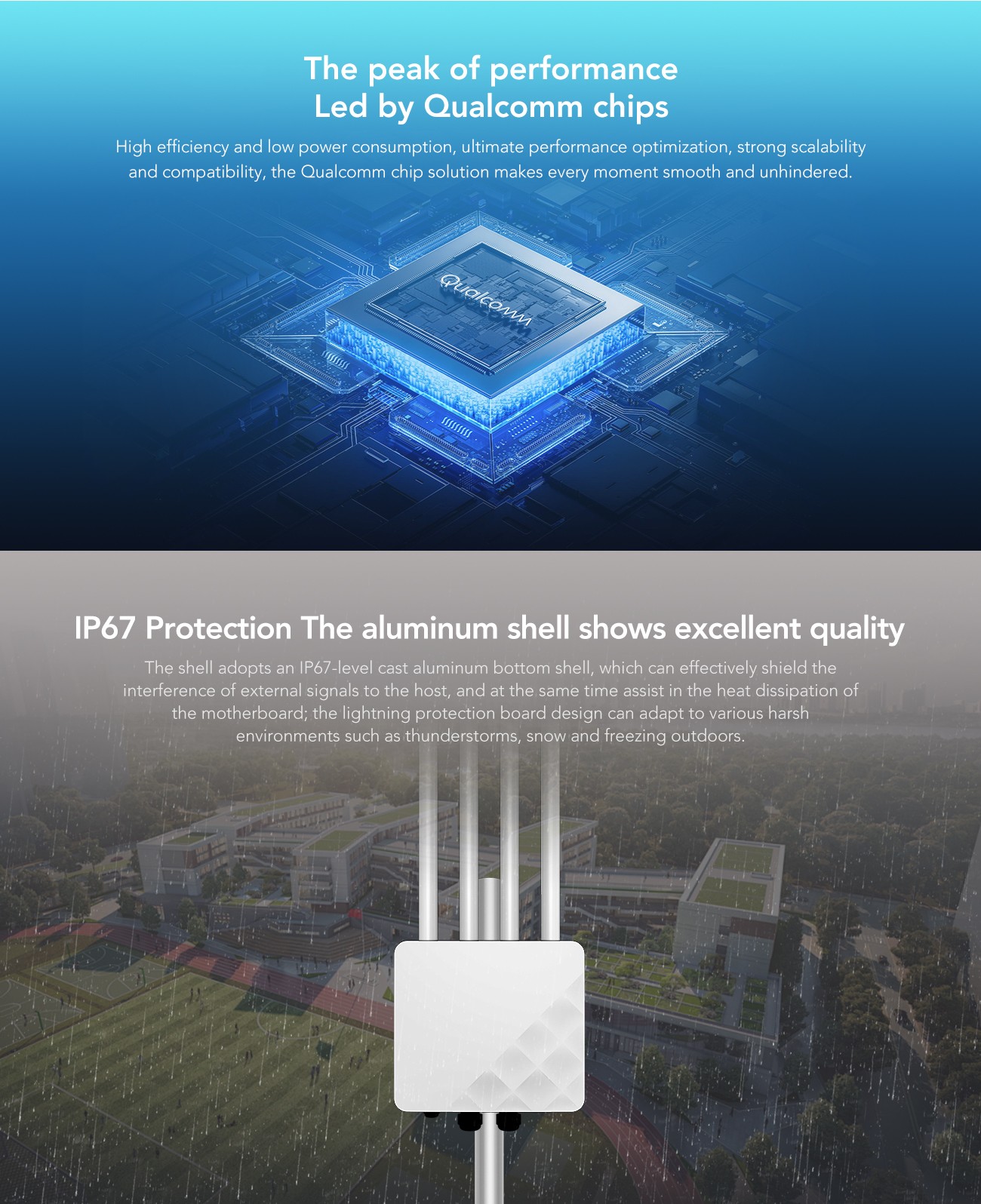

levels of protection	IP67
ESD	Air discharge + / -8K, contact discharge + / -6 K
surge	Common mode 2K, difference mode 1K
