Hardware specification

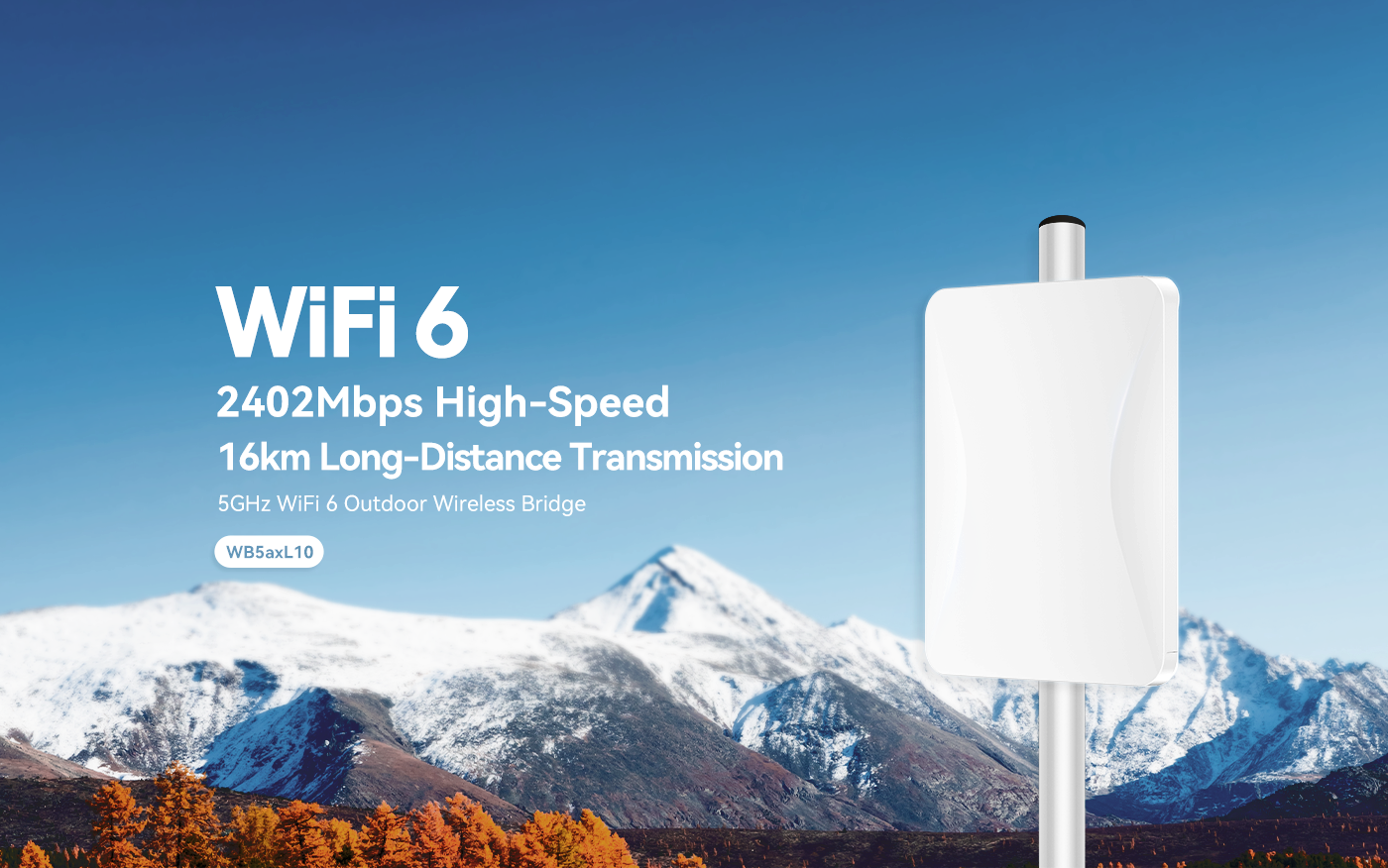

Model	WB5axL10
Operating frequency band of 5GHz	5.150GHz～5.850GHz
5GHz WIFI transmission protocol	802.11 a / n / ac /ax

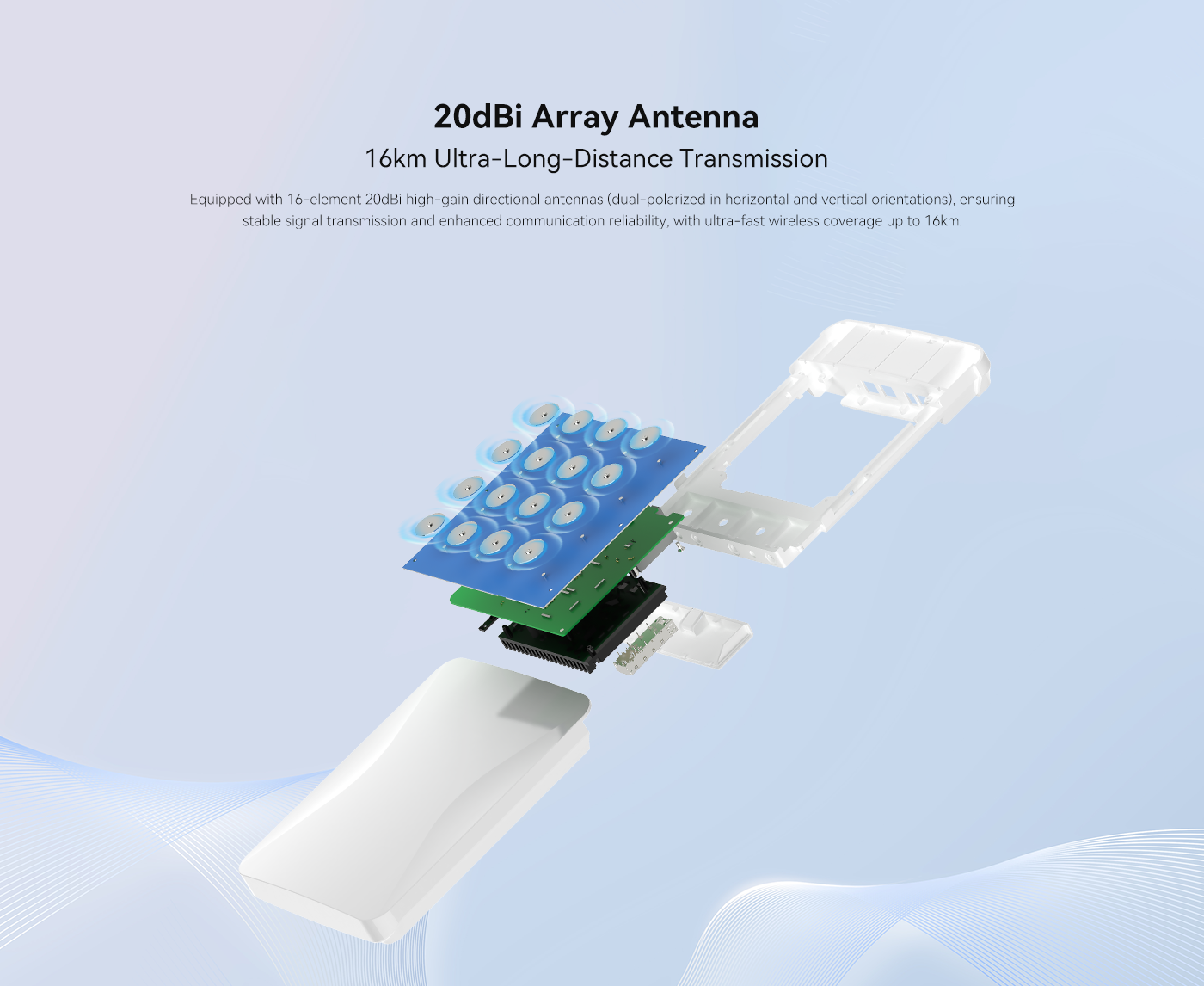

Antenna	Built-in directional flat antenna 5G, 20dBi
Maximum rate	The 5GHz provides a maximum access rate of 2402Mbps, and the PTP measured has reached over 900 Mbps
5GHz EVM	802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB
Frequency offset (ppm)	±20ppm

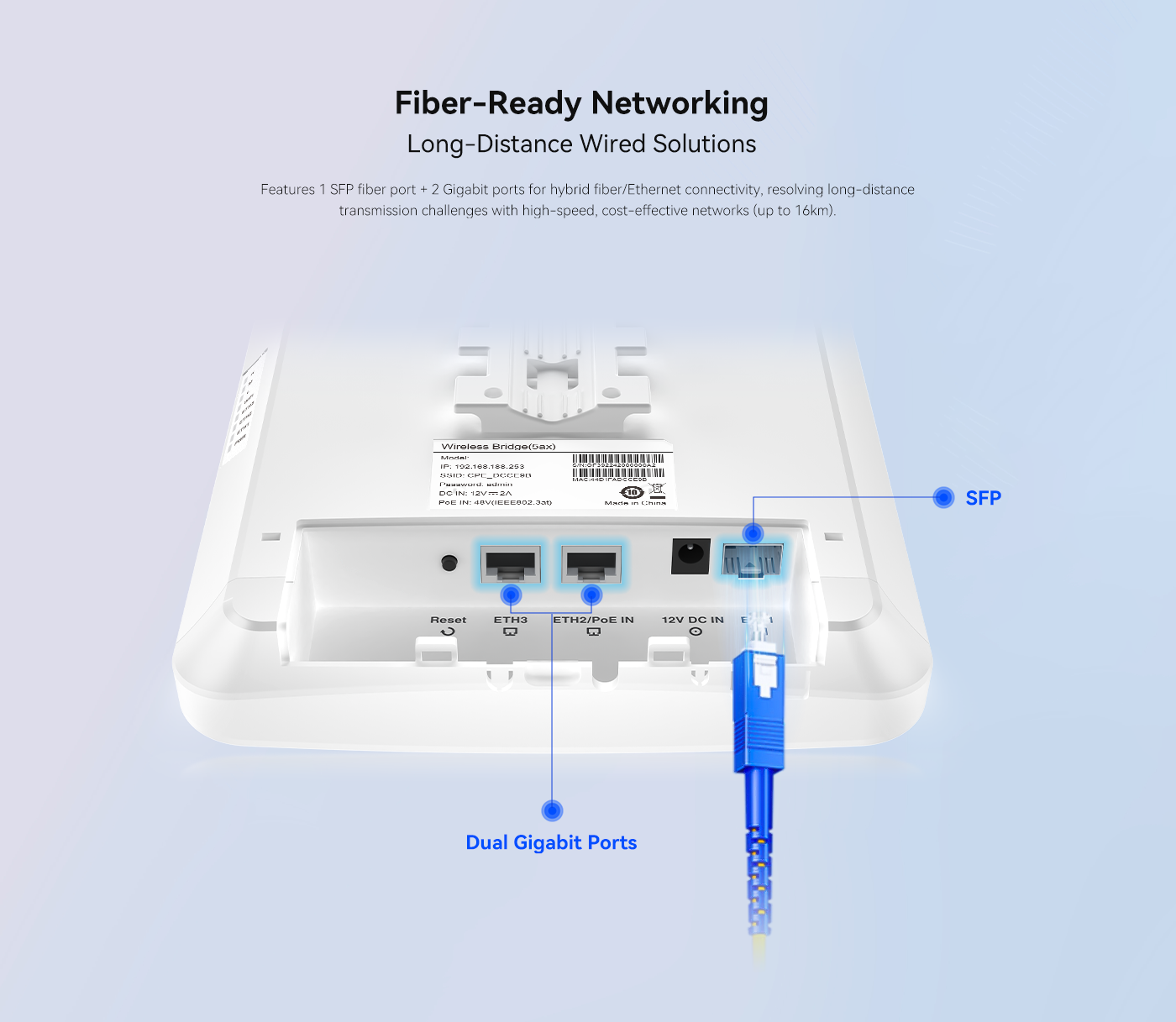

Interface	1 Gigabit SFP port (ETH1 One 10/100/1000Mbps adaptive network port (ETH2), supporting POE 48V power supply; One 10/100/1000Mbps adaptive network port (ETH3)
External button	reset key (Press and hold for 6 to 10 seconds to restore the factory default configuration)
Status indicator light	Silk-screened PWR: Power indicator light (green, always on when powered; It went out without electricity. Silk-screened ETH1: Gigabit optical port indicator light (green, off when not connected, always on when connected, data transmission and reception flash) Silk-screened ETH2: Gigabit network port indicator light (green, off when not connected, always on when connected, data transmission and reception flash) Silk-screened ETH3: Gigabit network port indicator light (green, off when not connected, always on when connected, data transmission and reception flash) Silk-screened WiFi: WiFi status (green, WiFi on and connected, always on; Waiting for connection, flashing, WiFi off, off Silk-screened L: Signal indicator light (Greater than or equal to the set value, green, constantly on; less than the set value, off) Silk-screened M: Signal indicator light (Greater than or equal to the set value, green, constantly on; less than the set value, off) Silk-screened H: Signal indicator light (Greater than or equal to the set value, green, constantly on; less than the set value, off)

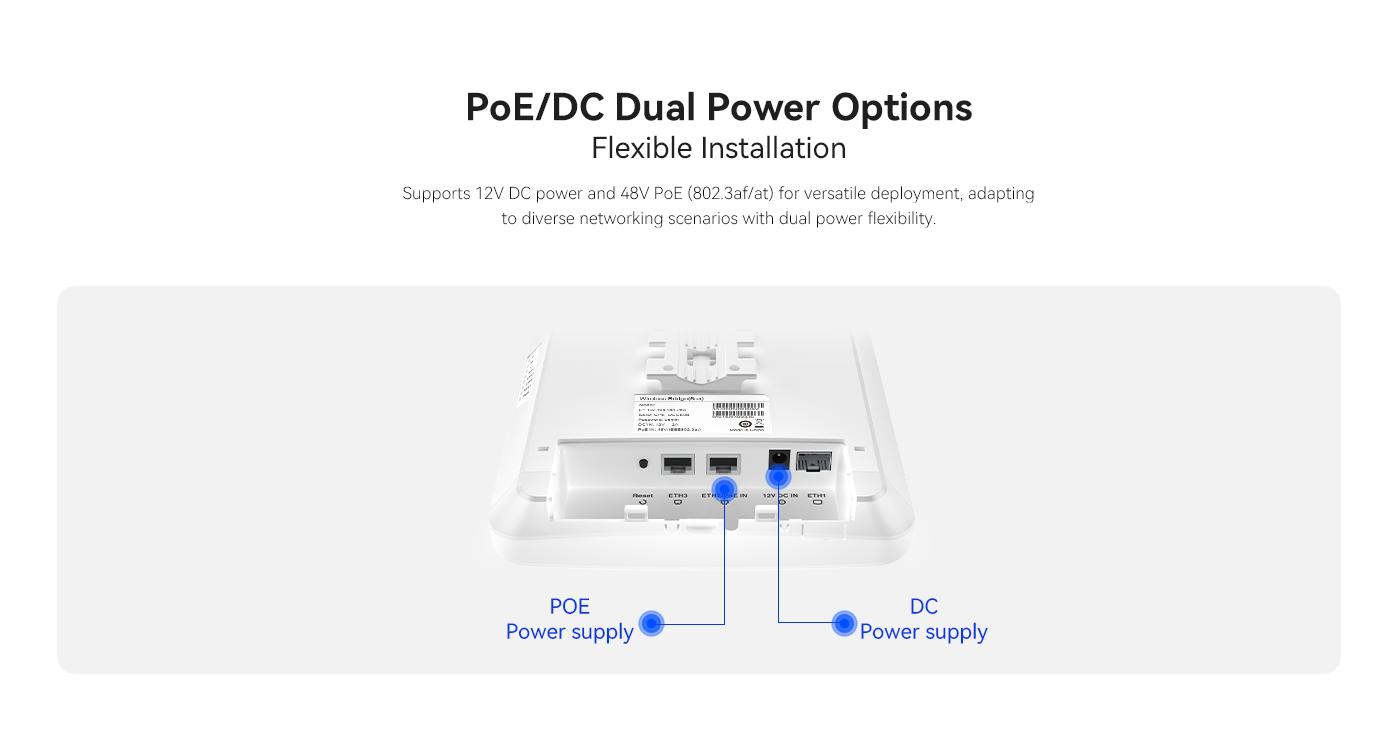

Power supply	DC2.0 12V⎓1.5A，PoE 802.3at
Product size	229×179×47mm

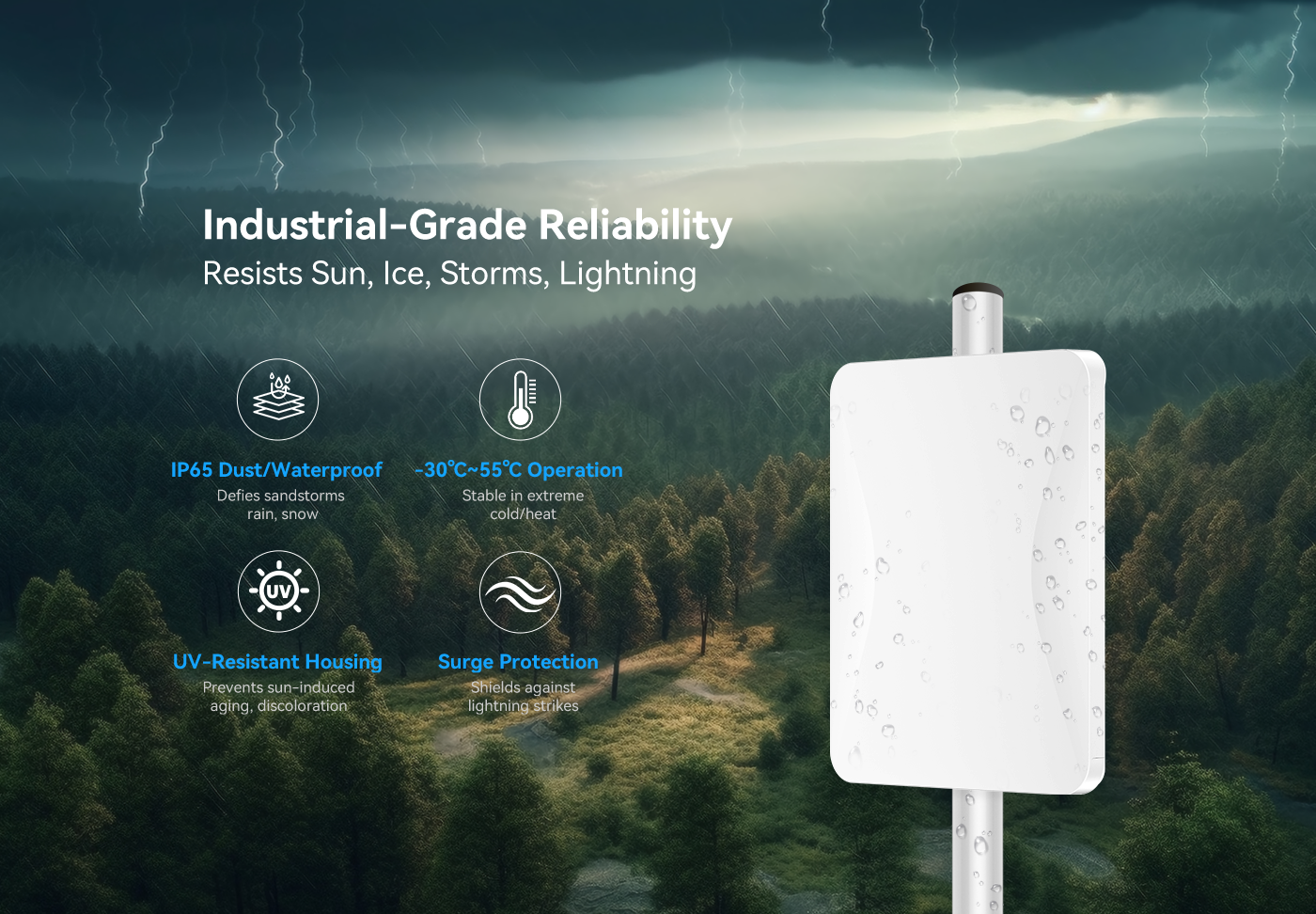

Working environment	Normal operating temperature :-30°C to 55°C Storage temperature: -40°C to 70°C Humidity: 5% - 95% (no condensation)
ESD	Air discharge +/-15K, contact discharge +/-8K
